Basic Info

Product Description

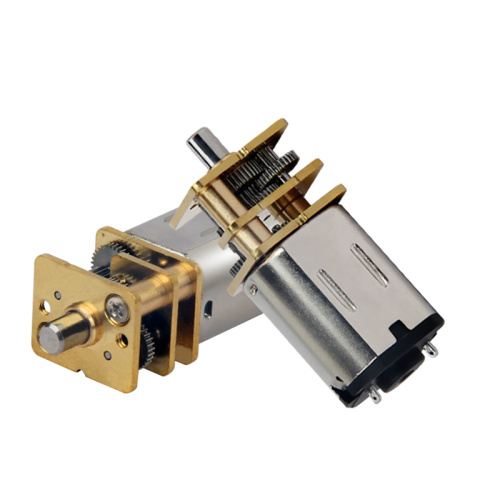

N20 Carbon Brush Motor is a type of Carbon Brush Motor.
Carbon Brush Motor is a rotary electric machine that includes a brush device that converts electrical energy into mechanical energy (electric motor) or converts mechanical energy into electrical energy (generator). Brushed motor is the basis of all motors. It has the characteristics of quick start, timely braking, smooth speed regulation in a wide range, and relatively simple control circuit.

N20 Carbon Brush Motor Parameters

MODEL	ITEMS	SPEC
N20 Motor	Rated Voltage	6VDC
	Direction of Rotation	CCW
	Operating Temperature	-10 °C ~ +50 °C
	Operating Humidity	30% ~ 80%
	Gearbox Ratio	1:210
	Rated Speed	21000 ± 10% rpm
	No Load Current	<85mA
	No Load Speed	100 ± 10% rpm
	Starting Voltage	0.5 V
	Starting Current	22mA
	Rated Loading	0.4Kg • cm
	Rated Load Current	217mA
	Rated Load Speed	77 ± 10% rpm
	Stall Current	0.82A Max
	Maximum Torque	1.8Kg.cm Max
	Rated Power	0.33W

Drawing of N20 Carbon Brush Motor

Applications of Carbon Brush Motor
• Electric toothbrush
• Electric toys
• Electric tools
• Electric callus removers
• Robot vacuum cleaner
• Automobile electric components
• Small home appliances
• Treadmill
• Medical - Powered surgical instruments, Dental hand tools, Infusion, Volumetric & Insulin Pumps, Diagnostic & scanning equipment
• Security & Access - Security cameras, Locks, Bar code readers, Paging systems
• Aerospace & Defense - Cockpit gauge, Indicators, Satellites, Optical scanners
• Robotics & Factory Automation - Conveyors, Remote controlled vehicles, Industrial robots
• Power Hand Tools - Shears, Pruning hand tools, Nail guns
• Office equipment
• Semiconductors
• Model railways
• Document handling equipment
• Optics equipment
• Automotive
• Transportation equipment
• Audio & video equipment
• Medical Analyzers
• Infusion Pumps
• Electronic Assembly Surface Mount Equipment - Electronic assembly, Robotics and Automated machinery equipment and Pick and place machinery

DC motor stepping motor DC motor

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
