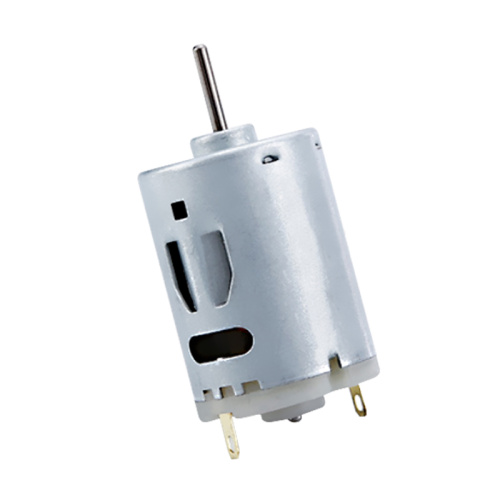

365 Carbon Brush Motor is a type of Carbon Brush Motor.
Carbon Brush Motor is a rotary electric machine that includes a brush device that converts electrical energy into mechanical energy (electric motor) or converts mechanical energy into electrical energy (generator). Brushed motor is the basis of all motors. It has the characteristics of quick start, timely braking, smooth speed regulation in a wide range, and relatively simple control circuit.

365 Carbon Brush Motor Parameters

MODEL	ITEMS	SPEC
365 Motor	Rated Voltage	15VDC
	Direction of Rotation	CCW
	Max Efficiency	66.4%
	Rated Current	1170mA
	Rated Torque	85.35g.cm
	Rated Speed	13300rpm
	No Load Current	210mA
	No Load Speed	15700rpm
	Peak Current	3366mA
	Peak Torque	280.48g.cm
	Peak Power	22.59W
	Stall Current	6.52A
	Stall Torque	561g.cm

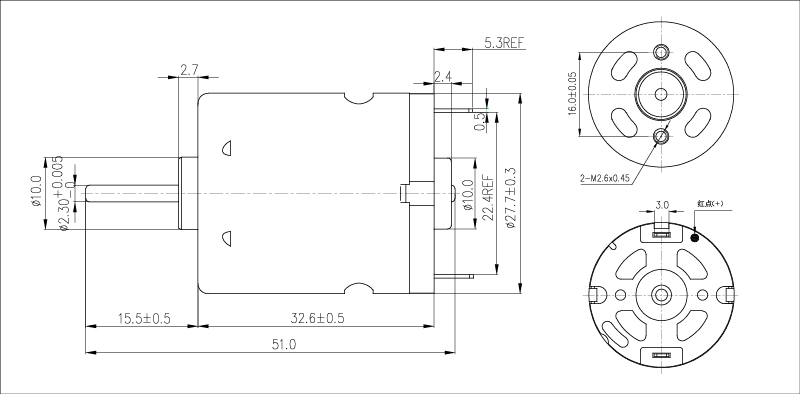

Drawing of 365 Carbon Brush Motor

365 8

Applications of Carbon Brush Motor
• Electric toothbrush
• Electric toys
• Electric tools
• Electric callus removers
• Robot vacuum cleaner
• Automobile electric components
• Small home appliances
• Treadmill
• Medical - Powered surgical instruments, Dental hand tools, Infusion, Volumetric & Insulin Pumps, Diagnostic & scanning equipment
• Security & Access - Security cameras, Locks, Bar code readers, Paging systems
• Aerospace & Defense - Cockpit gauge, Indicators, Satellites, Optical scanners
• Robotics & Factory Automation - Conveyors, Remote controlled vehicles, Industrial robots
• Power Hand Tools - Shears, Pruning hand tools, Nail guns
• Office equipment
• Semiconductors
• Model railways
• Document handling equipment
• Optics equipment
• Automotive
• Transportation equipment
• Audio & video equipment
• Medical Analyzers
• Infusion Pumps
• Electronic Assembly Surface Mount Equipment - Electronic assembly, Robotics and Automated machinery equipment and Pick and place machinery

DC motor stepping motor DC motor

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
