385 Carbon Brush Motor - MAINTEX

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

385 Carbon Brush Motor is a type of Carbon Brush Motor.
Carbon Brush Motor is a rotary electric machine that includes a brush device that converts electrical energy into mechanical energy (electric motor) or converts mechanical energy into electrical energy (generator). Brushed motor is the basis of all motors. It has the characteristics of quick start, timely braking, smooth speed regulation in a wide range, and relatively simple control circuit.

385 Carbon Brush Motor Parameters

MODEL	ITEMS	SPEC
385 Motor	Rated Voltage	21VDC
	Direction of Rotation	CW
	Max Efficiency	66.08%
	Rated Current	303mA
	Rated Torque	6.952mN.m
	Rated Speed	5772rpm
	No Load Current	57mA
	No Load Speed	6850rpm
	Peak Current	831mA
	Peak Torque	21.906mN.m
	Peak Power	7.869W
	Peak Speed	3430rpm
	Stall Current	1.606A
	Stall Torque	43.813mN.m

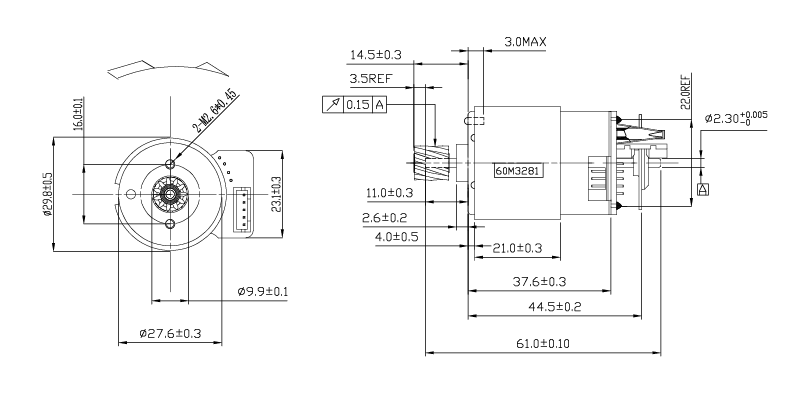

Drawing of 385 Carbon Brush Motor

385 2 1

Applications of Carbon Brush Motor
• Electric toothbrush
• Electric toys
• Electric tools
• Electric callus removers
• Robot vacuum cleaner
• Automobile electric components
• Small home appliances
• Treadmill
• Medical - Powered surgical instruments, Dental hand tools, Infusion, Volumetric & Insulin Pumps, Diagnostic & scanning equipment
• Security & Access - Security cameras, Locks, Bar code readers, Paging systems
• Aerospace & Defense - Cockpit gauge, Indicators, Satellites, Optical scanners
• Robotics & Factory Automation - Conveyors, Remote controlled vehicles, Industrial robots
• Power Hand Tools - Shears, Pruning hand tools, Nail guns
• Office equipment
• Semiconductors
• Model railways
• Document handling equipment
• Optics equipment
• Automotive
• Transportation equipment
• Audio & video equipment
• Medical Analyzers
• Infusion Pumps
• Electronic Assembly Surface Mount Equipment - Electronic assembly, Robotics and Automated machinery equipment and Pick and place machinery

DC motor stepping motor DC motor

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
