AA150XW14DDE11 Mitsubishi 15.0 inch TFT-LCD
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
The AA150XW14DDE11 is a 15.0 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, without backlight driver, touch screen PCAP. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C ,This Mitsubishi TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA150XW14DDE11 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 346.5(W)×275(H)×15.9(D) mm, with surface treament of Clear, net weight of TBD. As a SWV, Normally Black, Transmissive LCM product, AA150XW14DDE11 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 5 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA150XW14DDE11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA150XW14DDE11 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
15.0 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1024(RGB)×768 (XGA) 85PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
304.128 × 228.096 (H×V) |
|
Outline(mm) |
346.5 × 275 × 15.9 (H×V×D) |
|
Treatment |
Clear |
|
Luminance |
800 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Response |
12/12 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SWV, Normally Black, Transmissive |
|
Color Depth |
262K/16.7M 72% NTSC |
|
Backlight |
5 strings WLED , 100K hours , No Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C |

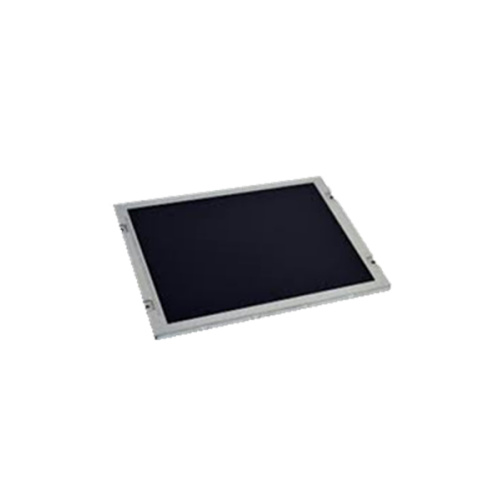

Product Picture:
