AC070MR11 Mitsubishi 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AC070MR11 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20190808 which was released out on 8 8 2019, AC070MR11 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 169.8(W)×109.7(H)×9.3(D) mm, viewing area size of 154.4(W)×93.44(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 185g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AC070MR11 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AC070MR11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AC070MR11 |
|
Brand |
Mitsubishi |
|
Diagonal Size |
7.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×480 [WVGA] 133PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
152.4(H)×91.44(V) mm |
|
Outline Dim. |
169.8(H)×109.7(V) ×9.3(D) mm |
|
Bezel Area |
154.4(H)×93.44(V) mm |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
15/15 (Typ.)(Tr/Td) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Operating Mode |
SWV, Normally Black, Transmissive |
|
Support Color |
262K/16.7M |
|
Light Source |
WLED [2 strings] , 50K hours , W/O Driver |
|
Weight |
185g (Typ.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |

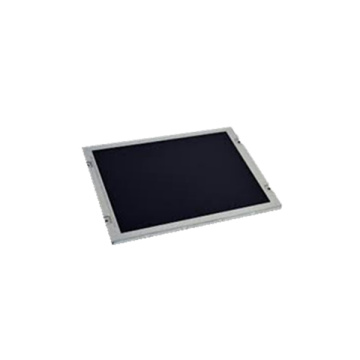

Product Picture:
