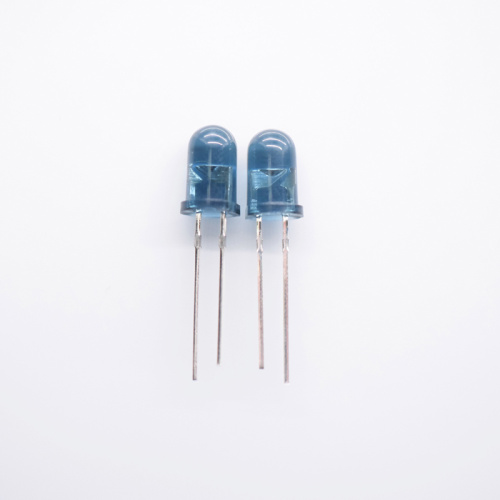

Infrared LED Lamps 503IRBT-85L/16I120-45A When IR LED was packaged by blue lens, this lens can be a filter to filter out some unnecessary light sources. 850nm LED is a common IR wavelength used in CCTV applications today. IR(infrared) wavelengths are measured in "nm", which are used to specify the wavelength of electromagnetic radiation near the visible part of the light spectrum. Do you also need some 850nm LED for your application? Contact us now~ We packaged this 850 infrared light emitting diode as 5mm blue lens. For all the through-hole LED, this the color of lens can be changed as customer's application or requirement. Clear lens, blue lens or dark lens are all available for this lens. For the whole product(or complete system), this just one 850nm LED in individual LEDs, but it do will work perfect for your application.

infrared led

- Size: 5.0*H8.7mm

- Chip Number:1 chips

- Color: 850nm

- Type: Lens clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm IR Through-hole LED -

5mm 850nm led

- Through-hole IR LED Radiant -

850nm IR LED 45DEGREE

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole IR LED Parameter -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation

Pd

220mw

Pulse Forward Current

IFP

1000mA

Forward Current

IF

120mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

3000v

Warranty

Time

5Years

Antistatic bag

Piece

1000Back

Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.3
1.4
1.6

V

IF=50mA

1.5 1.6 1.8
V
IF=100mA

2.0
V
IF=1000mA

Rediant Intensitye

Ee

35
60
mw/sr

IF= 50mA

70
95
mw/sr IF=100mA

860

mw/sr IF=1000mA

Luminous Power PO

25
mw IF=50mA

52
mw IF=100mA

500
mw IF=1000mA

Peak Wavelength

λP

845
850

nm

IF=20mA

Half Width

Dl

25

nm

IF=20mA

Viewing Half Angle

2q1/2

±22

deg

IF=20mA

Reverse Current

IR

5

uA

VR=5V

Luminous Intensity is measured by ZWL600.

q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
