5mm 850nm Infrared LED 45-degree Blue Lens 0.2W

5mm 850nm Infrared LED 45-degree Blue Lens 0.2W

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

Infrared LED Lamps 503IRBT-85L/12I60-45A is a infrared LED that packaged by Tyntek(a famous LED chip brand from Taiwan) 12mil IR LED bare die and blue epoxy lens. These 850nm LED have a long life solid state reliability. 300um*300um AlGaAs/AlGaAs infrared chip and 45 degree IR LED is a common infrared LED, which is have a long radiation, high brightness and low voltage. Because of the material of LED chip, infrared LED have much lower voltage than red LED chip, blue, green and white LED chip. But the low voltage will not limit the current through the LED. So all the IR LED will have low voltage. For these 5mm blue case through-hole LED, we also can package it with 680nm led, 700nm led, 720nm led, 730nm led, 740nm led, 750nm led, 760nm led, 770nm led, 780nm led, 800nm led, 810nm led, 820nm led, 830nm led, 840nm led, 850nm led, 880nm led, 900nm led, 920nm led, 950nm led, 1000nm led, 1050nm led, 1100nm led, 1200nm led, 1300nm led, 1550nm led ect. These 5mm 850nm infrared LED was packaged by blue lens. infrared LED has a longer wavelength that visible light. People cannot see it with the naked eye. If you need other angle for this IR LED, just feel free to let us know and we can produce this LED as your requirement.

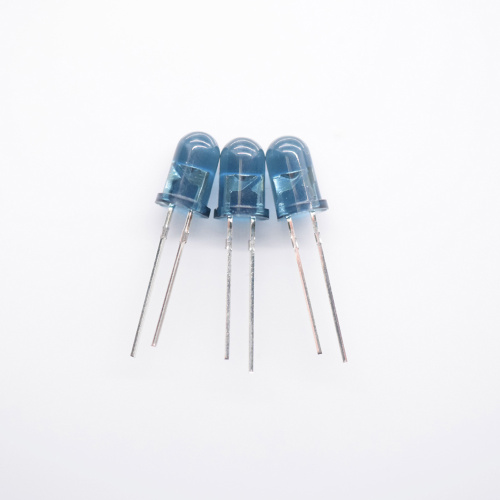

850nm infrared led

- Size: 5.0*H8.7mm

- Chip Number:1 chips

- Color: 850nm

- Type: Blue clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm IR Through-hole LED -

5mm IR LED Size

- Through-hole IR LED Radiant -

Infrared LED 45 degree

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole IR LED Parameter -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	80mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	60mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.5

1.9

V

IF=50mA

Pulse Forward Voltage

VF

2.6

V

IFP=500mA

Radiant Intensity

IE

20

30

mw/sr

IF=50mA

Peak Wavelength

λP

840

850

860

nm

IF=50mA

Total Radiated Power

PO

6

mw

IF=50mA

Half Width

Dl

50

nm

IF=50mA

Viewing Half Angle

2q1/2

±22

deg

IF=50mA

Reverse Current

IR

5

uA

VR=5V

Rise Time

Tr

25

ns

IF=50mA

Fall Time

Tf

13

ns

IF=50mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
