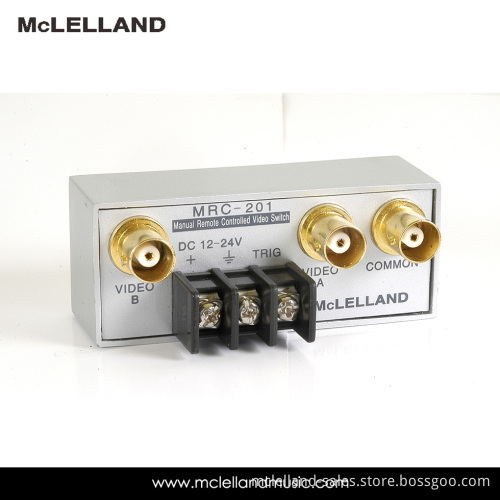

Manual Remote Controlled Video Switch-2*1 (MRC-201)

Manual Remote Controlled Video Switch-2*1(MRC-201)

The MRC-201 makes it easy for you to organize your video systems, you can use it for switchingtwo video sources to a single video destination, The MRC-201 special designed RF relay allowing the module to either-or either circuit a single video source to one of two destinations. VIDEO A is normally connected to COMMON. When the TRIG terminal is pulled to ground, VIDEO B is connected to COMMON and VIDEO A is disconnected. The actual switch (or other module actuating the switch action) may be located remotely from the MRC-201.

Specification:

Input, Output: BNC, Ground-referenced
TRIG Input Current: 2 mA
TRIG Input Threshold: 2 VDC
Power Requirement: DC 12-24Vdc, @30mA, Ground-referenced
