Video Distribution Amplifier (NPVD-104P)

Video Distribution Amplifier(NPVD-104P)

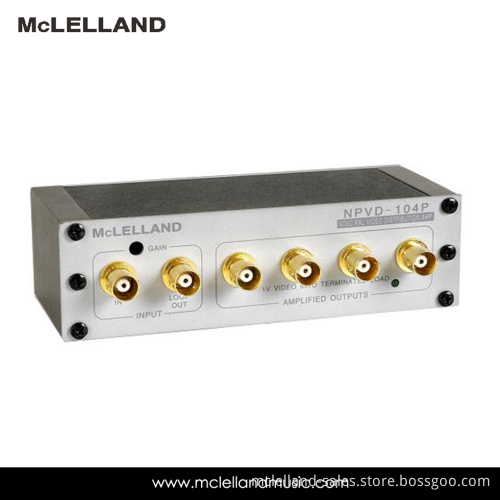

The McLelland NPVD-104P is a video distribution amp which designed for most security video system, home audio and professional sound installations. It provides one input, 4 distributed outputs which designed to connect to a 75 ohm terminated load, and one loop-through output. Source-terminated distributed outputs do not require termination if unused, you also can adjust the video level from -1~+7dB for using the gain potentiometer on the top panel.

Specification:

Input: 1 K ohm bridging 75 ohm line
Gain: -1dB to +7dB (0.9 to 2.25 V p-p, adjustable)
Outputs: 1 Loop out from input signal; 4 amplified outputs
Output Level: 1V p-p into 75 ohm
Frequency Response: 10 Hz to 10MHz (+/- 0.2dB)
Noise: Output Isolation: > 40dB
Differential Phase: 0.1 degree (measured at 10% and 90 APL)
Connector Type: BNC, PHONO, or Type F
Power requirement: DC 12-24 Vac @60mA, Ground-referenced
