Audio/Video Switcher-4*1 Phono (AVS-401)

Audio/Video Switcher-4*1 Phono(AVS-401)

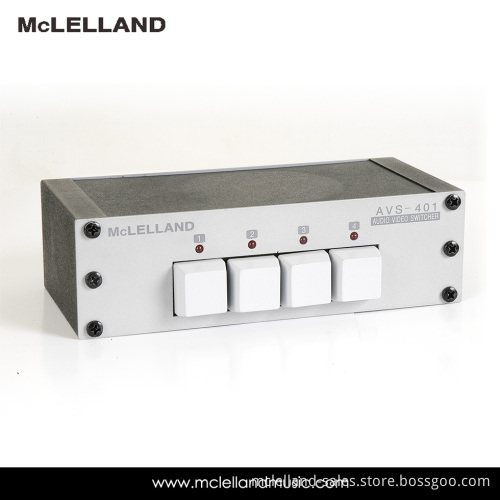

The McLelland AVS-401 is a simple, flexible and reliable 4- channel Audio/ Video Switcher which designed specifically your home theater or video editing system, such as VCRs, DVD players, or CD players. The AVS-401 is built with high-quality components for maximum performance and reliability, including gold-plated RCA phono jacks for best video and audio signal quality. For added convenience, the selector features separate pushbuttons for source selection and LED indicators for each channel. A front panel is also included the terminal block connector for remote control of the unit.

VIDEO INPUT

75 ohm, phono jack with gold contacts
Input level 1 V p-p
Output: 75 ohm, phono jack with gold contacts
Frequency Response:
10 Hz to 10 MHz (+/- 0.35 dB)
Residual Noise: Off attenuation: > 78 dB
Differential gain: 0.1%
Differential phase: 0.3 degree
Power requirement: DC12-24VAC, @ 100mA, Ground-referenced

AUDIO
Inputs: 10 K ohm, unbalance stereo phono jack
Gain: Unity nominal (+0, -1 dB)
Input Level: -10 dBV nominal
Output: 75 ohm, unbal stereo phono jacks
Frequency Response: 10Hz to 20 KHz (+/- 0.5dB)
Total Harmonic Distortion:
Headroom: >20 dB (at rated in/out level of -10 dBV)
Noise: -95 dB, -10 dBV ref. (20 Hz to 20 KHz)
Crosstalk: Below noise floor ( inputs terminated)
