Sequencing Video Switcher-4*1 BNC (RVS-401)

Sequencing Video Switcher-4*1 BNC(RVS-401)

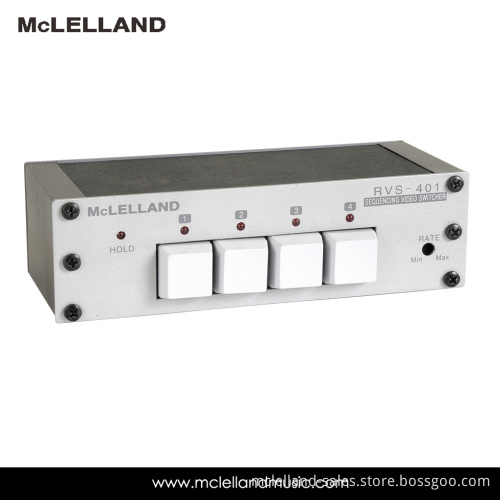

The RVS-401 is a desktop unit style video switch solution box, which designed to accept four video input signals and control display-sequence switching from video sources such as cameras and video servers into a single output. It features the Local/Remote Control and four pushbuttons with LED indicators corresponding to each video input and the rate control on the front-panel for setting the number of sequences, steps per sequence and dwell time. The RVS-401 features the video input & loop-through output jack of the four source signal channel; It also provides the terminator connector on the rear panelif 75 ohm termination of the input signal sirequired.

Specification:

Input Impedance: 5 K ohm bridging 75 Ohm line
Gain: Unity, (75 ohm terminated input, 75 ohm terminated output)
Load Impedance: 75 Ohm
Outputs: 4 Loop out from input signals, 1 amplified output
Operating Signal Level: 0.5 to 1.0 V p-p
Frequency Response: 10 Hz to 10 MHz (+/-0.35dB)
Noise: Crosstalk: Off Attenuation: >65 dB
Differential Gain: 0.1%
Differential Phase: 0.3 degree
Connector Type: BNC, gold plated
Sequencing Rate: Adjustable 1 to15 seconds
External Control Outputs: 4 @ 50 mA, Open- collector to ground
Power Requirement: DC 12-24 Vac @110mA, Ground-referenced
