M238HCA-L3Z Innolux 23.8 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) M238HCA-L3Z is a 23.8 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.This Innolux TFT-LCD is a 23.8 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Rev.C1_Ver2.0 which was released out on 5 15 2018, M238HCA-L3Z supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 535(W)×313(H)×14.95(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 2.18Kgs (Typ.). As a AAS, Normally Black, Transmissive LCM product, M238HCA-L3Z can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. M238HCA-L3Z utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
M238HCA-L3Z |
|
Panel Brand |
Innolux |
|
Panel Size |
23.8" |
|
Resolution |
1920(RGB)×1080 , FHD |
|
Display Area |
527.04(W)×296.46(H) mm |
|
Outline Size |
535(W)×313(H) ×14.95(D) mm |
|
Brightness |
250 cd/m² (Typ.) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Best View on |
Symmetry |
|
Display Colors |
16.7M 72% NTSC |
|
Frequency |
60Hz |
|
Weight |
2.18Kgs (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Surface |
Antiglare (Haze 1%), Hard coating (3H) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Display Mode |
AAS, Normally Black, Transmissive |
|
Response Time |
8/7 (Typ.)(Tr/Td) |
|
Lamp Type |
WLED , 30K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (2 ch, 8-bit) , 30 pins Connector |
|
Input Voltage |
5.0V (Typ.) |
|
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

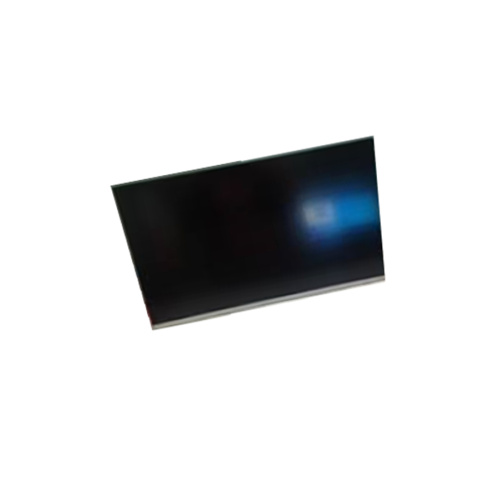

Product Picture:
