G238HCJ-L01 23.8 inch Innolux TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 PCS |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This Innolux TFT-LCD is a 23.8 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G238HCJ-L01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 543(W)×317.4(H) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.71Kgs (Typ.). As a AAS, Normally Black, Transmissive LCM product, G238HCJ-L01 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. G238HCJ-L01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0±0.5V. It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
G238HCJ-L01 |
|
Brand |
Innolux |
|
Diagonal Size |
23.8" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×1080, FHD 92PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
527.04(W)×296.46(H) mm |
|
Bezel Opening |
530.2(W)×299.6(H) mm |
|
Outline(mm) |
543 × 317.4 (H×V×D) |
|
Treatment |
Antiglare (Haze 25%), Hard coating (3H) |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Response |
8/7 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
AAS, Normally Black, Transmissive |
|
Color Depth |
16.7M 72% NTSC |
|
Backlight |
WLED , 30K hours , No Driver |
|
Mass |
2.71Kgs (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (2 ch, 8-bit) , 30 pins Connector |
|
Voltage Supply |
5.0±0.5V |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

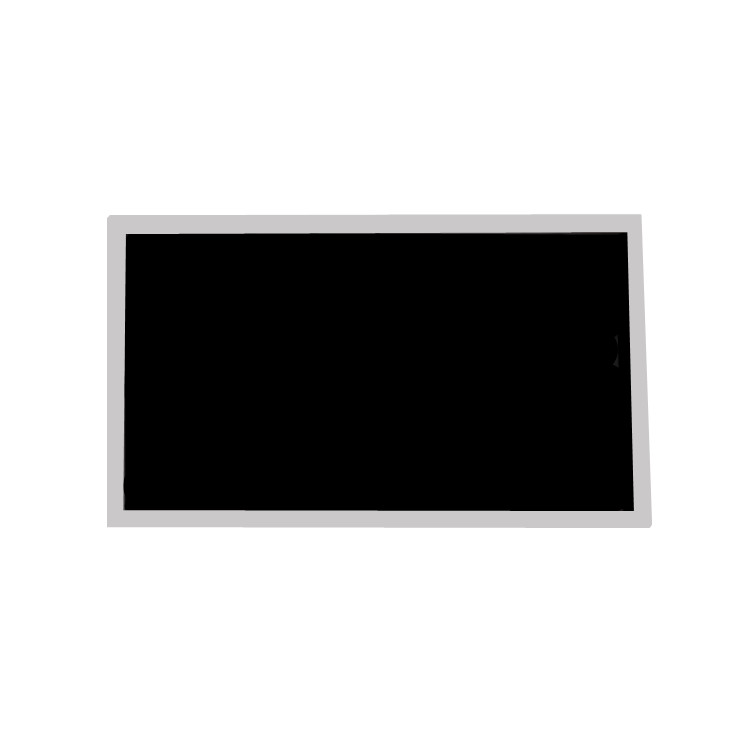

Product Picture:
