SFVB50-DS7-R driving board for PA050DS7
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN |
This Color TFT LCD Driving Board apply to drive PVI’s PA050DS7 Color TFT LCD Panel, The Driving Board is a combination of two types signal,including Composite video,data signal given through bus; It provides all the Needs to convert the signal to the proper interface of LCD Panel. It can accept Composite Video signal input of PAL and NTSC. In the bus mode, you can used it just like use a DRAM (Such as Hitachi: HM62256; Winbond: W24257).
Features:
- Fit PRIME VIEW PA050DS7 TFT LCD
- Ultra Compact
- DC/DC DC/AC Video Decoder All In One
- PAL or NTSC Composite Video input
- Bus Data Video signal input (From MCU or Host Computer)
- Up/Down Display Reverse
- Left/Right Display Reverse
- Single Operation Voltage 12V
- VRAM Capacity: 64K *8 Bits
- Graphics Dots 320* RGB *234
Applications:
- Security
- Door Phone
- Video Phone
- Portable TV
- Instrument Display
- Video input signal:
- Composite Video Signal 1.0Vp-p 75R
- Bus Data Video signal (From MCU or Host Computer)
|
Model name |
SFVB50-DS7-R |
SFVB64-DS1-R |
Unit |
|
Supporting TFT-LCD |
PA050DS7 |
PA064DS1 |
- |
|
Power input |
12±10% |
12±10% |
v |
|
Outline dimension |
125.2×91.0×10.5 |
125.2×91.0×10.5 |
mm |
|
System model |
NTSC/PAL |
NTSC/PAL |
- |
|
Adjustment |
brightness.color. contrc:st.tint.etc |
brightness.color. contrc:st.tint.etc |
- |
|
Reversal |
L/R/U/D |
L/R/U/D |
- |
|
VRAM capacity |
64KX8 Bits |
64KX8 Bits |
- |
|
Graphics dots |
320xRGBX234 |
320xRGBX234 |
- |
|
Operating temperature |
-0 ~ +60 |
-0 ~ +60 |
℃ |
|
Storage temperature |
-20 ~ +80 |
-20 ~ +80 |
℃ |

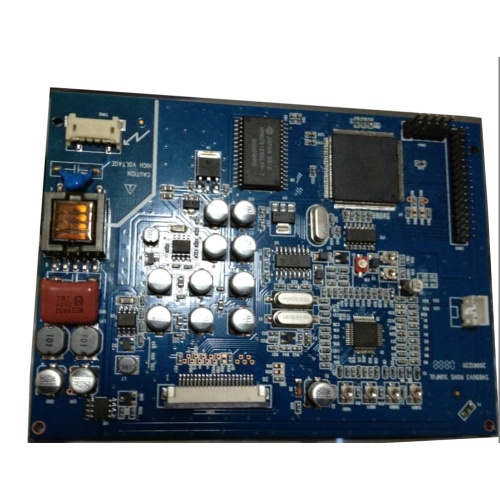

Board Picture
