This Color TFT LCD Driving Board apply to drive PVI’s PA050XS1 PA050XU4,PA050XSG Color TFT LCD Panel, The Driving Board provides all the Needs to convert Composite video signal to the proper interface of LCD Panel .It can accept PAL and NTSC Video signal input.
Features:
● Fit PRIME VIEW PA050XS1& PA050XU4,PA050XSG TFT LCD
● Ultra Compac
● DC/DC DC/AC Video Decoder All In One
● PAL or NTSC Video input
● Up/Down Display Reverse
● Left/Right Display Reverse
● Single Operation Voltage 12V
Applications:
● Security
● Video Game
● Door Phone
● Video Phone
● Portable TV
● Instrument Display
|
Model name |
SFA050XS1-OR |
Unit |
|
Supporting TFT-LCD |
PA050XS1 |
- |
|
Power input |
12±10% |
v |
|
Outline dimension |
110.0×80.0×10.0 |
mm |
|
System model |
NTSC/PAL |
- |
|
Adjustment |
brightness.color. contrc:st.tint.etc |
- |
|
Reversal |
L/R/U/D |
- |
|
Operating temperature |
-20 ~ +70 |
℃ |
|
Storage temperature |
-30 ~ +80 |
℃ |
Board Picture

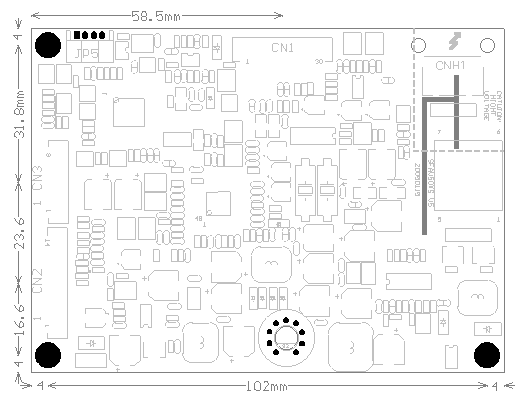

Board and Dimension
