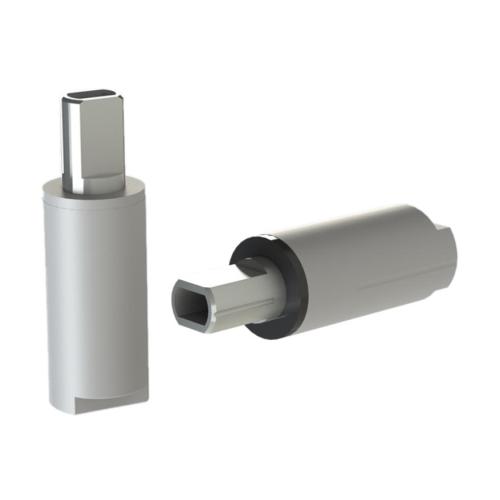

Soft Close Damper Vane Damper For Breadbox
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001:2015 |
| HS Code: | 3926901000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Welcome to purchase high quality and breadbox rotary dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. Our products with advantages of excellent quality, competitive price, and best service are your first choice. If you have interest in our breadbox vane dampers or require any further information, please do not hesitate to contact me.
Specifications
|
Applied Torque(T)
(kgf.cm )
|
|
| 103 | 10kgf.cm |
| 153 | 15kgf.cm |
| 203 | 20kgf.cm |
| 253 | 25kgf.cm |
NOTE:
1. Please contact the corresponding product engineer for specific torque products.
2. The Standard of completion closing:the angle is 90° between Shaft A and Shaft B.
3. It is closing position to assemble the shaft into the housing.
4. Max. cycle rate: 3 cycles/min(Clockwise110 °, 110 ° anti-clockwise for 1 cycle)
5. Operating temperature:0~40℃
6. Storage temperature:-10~60℃
Drawings
Materials
| 4 | Vane | BPT+GF |
| 3 | Shaft | ZDC |
| 2 | Cap | BPT+GF |
| 1 | Housing | BPT+GF |
| NO. | Description | Material |
Damper Characteristics
Soft closing time test
Measure the closing time from angle 70 to 0. Rated Torque (T).
Test Temperature: 23±2℃.
Durability test:
Test Method: From the closing position to opening position, push back to 70°,soft close from 70° to 0°.
Rated Torque (T).
Operation Angle: 0°~110°.
Test Temperature: 23±2℃.
Durability test cycle:50,000cycles.The result of product test )>2s.
Applications
Toilet seat, medical equipment, food delivery box, breadbox, washing machines, middle-size large cover plate slow down, etc.
Caution
1. Do not operate without sufficient mounting strength.
2. Do not operate without an external stopper.
3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
