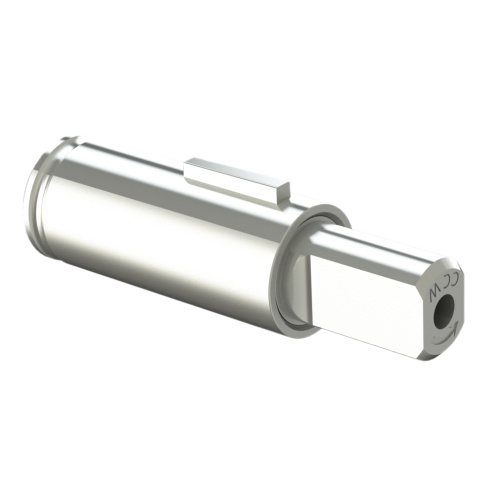

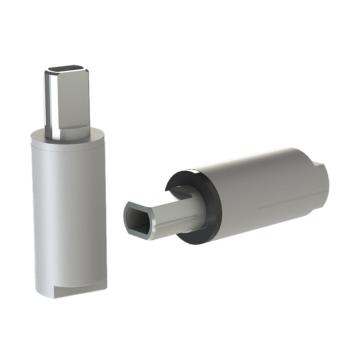

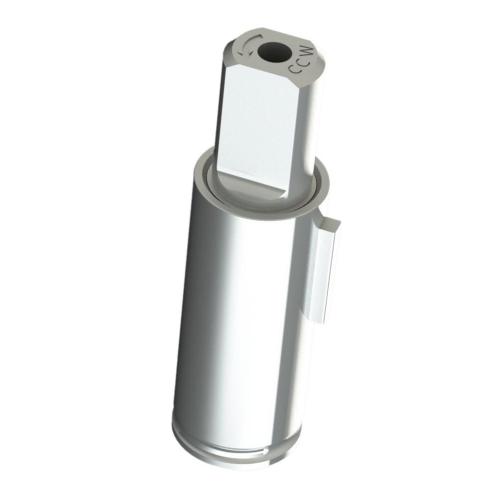

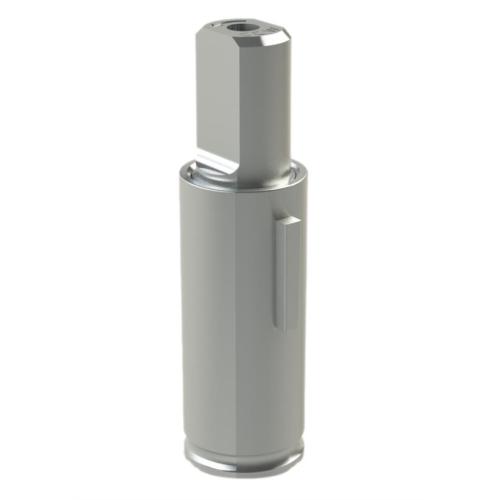

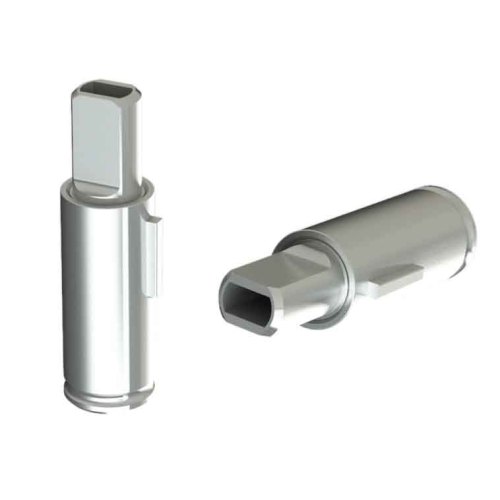

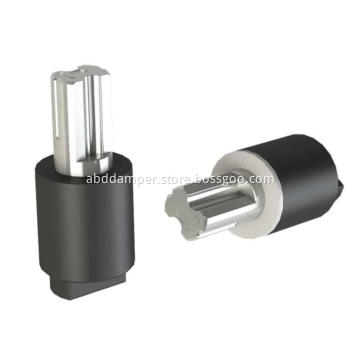

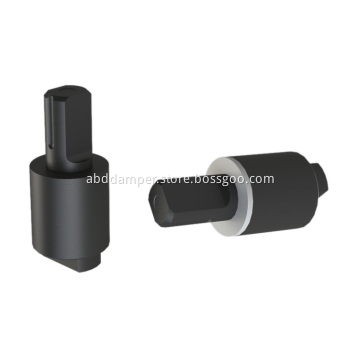

Rotary Damper Vane Damper Application On Toilet Seat

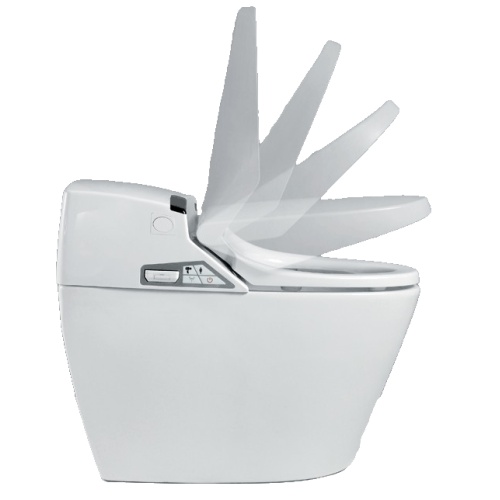

Upgrade your toilet seat and experience the excellence of our innovative Rotary Damper Vane Damper. Designed for luxury and comfort, the built-in damper provides a smooth and silent shutdown that completely eliminates annoying thumping sounds.

Our High Temperature Dampers are designed to withstand the rigors of daily use and ensure long-term, consistent performance. Its durable construction combined with high-quality materials ensures reliable operation even in harsh environments.

Designed specifically for Toilet Seat Vane Damper applications, our shock absorbers are designed for perfect fit and seamless integration. Through precision engineering, we ensure optimal performance and a comfortable user experience.

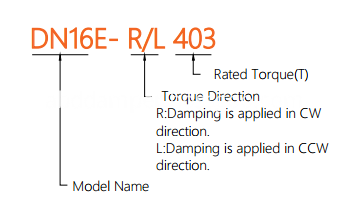

Specifications

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2.The Standard of completion closing:the angle is 0° between Shaft A and Shaft B.

3. It is closing position to assemble the shaft into the housing.

4. Max. cycle rate: 3 cycles/min(Clockwise110 °, 110 ° anti-clockwise for 1 cycle)

5.Operating temperature:0~40℃

6.Storage temperature:-10~60℃

Drawings

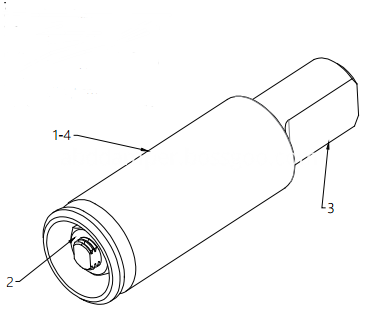

Materials

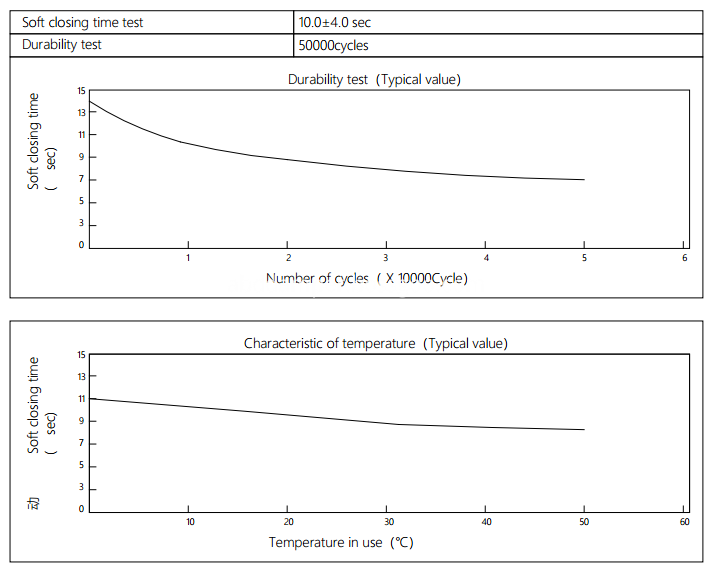

Damper Characteristics

Soft closing time test: Measure the closing time from angle 70 to 0.

Rated Torque (T).

Test Temperature: 23±2℃.

Durability test:

Test Method: From the closing position to opening position, push back to 70°,soft close from 70° to 0°.

Rated Torque (T).

Operation Angle: 0°~110°.

Test Temperature: 23±2℃.

Durability test cycle: 50,000 cycles. The result of product test )>2s.

Applications

Medical equipment, trash cans, storage boxes,toilet seat, household appliances, dishwashers, washing machines, small to midsize cover plate slow down, etc.

Caution

Our Company

ABD Equipment Co., Ltd. focuses on lean manufacturing of precision components in molding, assembly and quality management. The main products we develop and design include precision motion hinges, damping components, motor gearbox drive components, lock bodies and stop mechanisms for motion control related products.

ABD's products are widely used in household appliances, electrical products, industrial manufacturing, furniture decoration, hutch defends equipment, public facilities, etc. Our products is conducive to performing structural movement in soft, silent and safe environment, mitigating impact load, avoiding strike damage, prolonging mechanical life, reducing noise disturbance, improving product quality and improve customer satisfaction.

Our products range from barrel damper, vane damper, stop damper, gear damper, disk damper, shaft damper, shock damper, damping gas spring. Feel free to contact us if you are interested in any of the ABD products and services.
