Rotary Damper Shaft Damper For Screen Window
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001:2015 |
| HS Code: | 3926901000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Rotary Damper Damper For Screen Window is an innovative Shaft damper specially designed for screen window. It cleverly integrates the technical essence of Drive Shaft Damper and Crankshaft Damper to bring users unprecedented experience. This shaft damper uses an advanced Flexible Shaft Coupling design that not only absorbs and disperses vibration and noise generated when Windows are opened or closed, but also ensures smooth and stable operation.
The Rotary Damper Shaft Damper For Screen Window can significantly reduce the shaking caused by wind or improper operation, and protect the screen window structure from damage. At the same time, the drive shaft shock absorber section ensures efficient and accurate power transmission, making every operation easy.
Whether in the home, office or public place, Rotary Damper Shaft Damper For Screen Window can be excellent shock absorption performance, durability and convenient installation method, become the ideal choice to improve the quality of life and work efficiency.
NOTE:1. Please contact the corresponding product engineer for specific torque products.2. Max. rotation speed: 100r/min3. Max. circle rate: 10 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)4. Operating temperature: -10~50℃5. Storage temperature:-30~80℃
Specifications
| Applied Torque(T)(gf.cm ) | |
| 401 | 400±60gf.cm |
| 601 | 600±80gf.cm |
| 801 | 800±100gf.cm |
| 102 | 1000±150gf.cm |
| 152 | 1500±200gf.cm |
Drawings
Materials
| 3 | Shaft | POM |
| 2 | Cover | PC+ABS |
| 1 | Shell | PC+ABS |
| NO. | Description | Material |
Damper Characteristics
Applied torque: (T)Test Temperature: 23+/-5℃Rotating speed: 20r/minDurability test Method:Clockwise 360 °, 360 ° anti-clockwiseRotating speed: 50r/minTest Frequency: 1cycle/minTest Temperature: 23±5℃Durability test cycle: 50000cycleTest result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

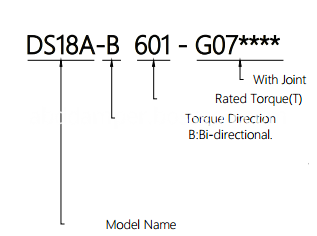

Joint specifications: G07A250~G07A380(Page.R20)
After installing the unidirectional joint, the damper torque single direction output. By adjusting the way of installation of one-way joint, the torque direction can be changed.
After installing the unidirectional joint, the damper torque single direction output. By adjusting the way of installation of one-way joint, the torque direction can be changed.ApplicationsScreen window, outdoor sun shades and many other roll up blinds, etc.
Caution1. Do not operate without sufficient mounting strength.2. Do not operate without an external stopper.3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
