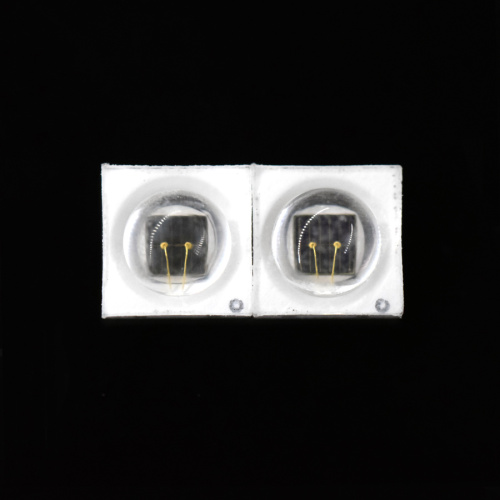

High Power SMT 940nm Infrared LED Emitter 3W
  • High Power SMT 940nm Infrared LED Emitter 3W
  • High Power SMT 940nm Infrared LED Emitter 3W
  • High Power SMT 940nm Infrared LED Emitter 3W
  • High Power SMT 940nm Infrared LED Emitter 3W
High Power SMT 940nm Infrared LED Emitter 3W
High Power SMT 940nm Infrared LED Emitter 3W
High Power SMT 940nm Infrared LED Emitter 3W
High Power SMT 940nm Infrared LED Emitter 3W
High Power SMT 940nm Infrared LED Emitter 3W
High Power SMT 940nm Infrared LED Emitter 3W

High Power SMT 940nm Infrared LED Emitter 3W

Min. Order:
5000 Piece/Pieces
Min. Order:
5000 Piece/Pieces
Transportation:
Ocean, Land, Air
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 1000000000 pcs/week
Supply Ability: 7000000000 pcs/week
Payment Type: T/T,Paypal
Incoterm: FOB,EXW,FCA
Certificate: GB/T19001-2008/ISO9001:2008
HS Code: 8541401000
Transportation: Ocean,Land,Air
Port: SHENZHEN
Product Description
Product Description

- 940nm LED -

3535FIRC-94L42I1A-ES

These 3535 LED is a 3W 940nm LED. Compare with high power 850nm infrared LED, these SMT 940nm LED emitter will got more dimmer red spot. People might think that infrared LED is a invisible LED. But in this case, this high power 3W 940nm LED will emit some dim brightness when it working. If you using the high power 850nm LED and high power 940nm LED for your night vision system, this 940nm will be more more concealed. Do you need some high power SMT LED 940nm for your application? Contact us for more detail~

High Power 3W 940 nm LED


- Size: 3.5*3.5*2mm

- Chip Number: 1 chip

- Color: 940nm LED

- Type: Surface mount device

- Chip brand:  Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance






-Dimension Parameters -

     3535 SMD LED Size

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

3W 940nm LED

*Colors in the photo was took by camera, please take actual emitting color as standard.


- Electrical Parameters -

Parameter

Symbol

Rating

Power Dissipation

Pd

3000mw

Pulse Forward Current

IFP

2000mA

Forward Current

IF

1000mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

3000v

Warranty

Time

5Years

Antistatic bag

Piece

1000Bag

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Radiant Intensity

Ee



160

210



IF=350mA

450



650

IF=1000mA

Viewing Angle

2q1/2



120



deg

IF=350mA

Peak Wavelength

λp

930

940

955

nm

IF=350mA

Spectral Bandwidth

Dl



50



nm

IF=350mA

Forward Voltage

VF

0.7





V

IF=10uA



1.4

1.8

IF=350mA





3

IF=1000mA

Reverse Current

IR





5

uA

VR=5V

*Luminous Intensity is measured by ZWL600.

*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

SMD LED gold wire connection

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection


- Packing -

2835 SMD LED package

*We package it with vacuum packing after tape it as a reel

- Application -

infrared LED  LAMP

- Related Infrared LED Lamp -

Infrared LED - SMD LED


- Production -

Production Process of LED

-  SMD LED Use of Attention-

SMD LED Use of attention
