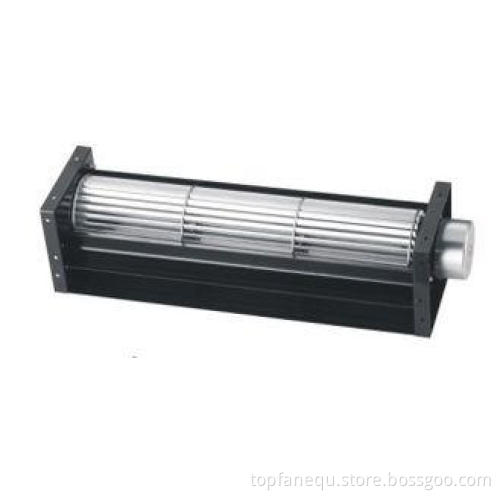

High Air Flow 2500rpm DC Centrifugal Fan Cross Flow Fans For Home Appliances

12V 60x240mm Cross Flow Fan, high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.

Specification

Model 60F Size(mm) Rated voltage Rated Current Speed Max Static Pressure Air Flow Noise Level Weight
A B C (v) (A) (rpm) (mmAq) (m3/mim) CFM (dB-A) (g)
LRD60120A12 123 138 183 12 0.60 2500 5.1 1.7 60 44 620
LRD60120A24 24 0.40
LRD60180A12 184 199 244 12 0.80 2200 3.8 2.5 88 46 700
LRD60180A24 24 0.45
LRD60240A12 245 260 350 12 1.00 2000 3.3 3.2 117 48 770
LRD60240A24 24 0.55
LRD60300A12 306 321 366 12 0.50 1600 1.8 3.3 113 47 840
LRD60300A24 24 0.25
LRD60360A12 368 383 428 12 0.55 1500 1.7 3.7 131 48 930
LRD60360A24 24 0.25
LRD60420A12 429 444 489 12 0.60 1400 1.7 4.4 156 50 1000
LRD60420A24 24 0.30
