12 Volt DC Fridge Cooling Fan Cross Flow Blower Fan For Hom
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

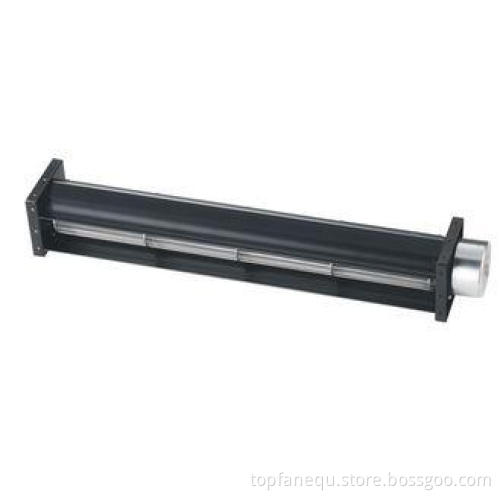

12V DC Cross-flow Blower Fans / 50x190mm Fridge Fans , DC Elevator Fans
12V 50x190mm Cross Flow Fan, high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.
Specification
| Model 50P | Size(mm) | Rated voltage | Rated Current | Speed | Max Static Pressure | Air Flow | Noise Level | Weight | |||
| A | B | C | (v) | (A) | (rpm) | (mmAq) | (m3/mim) | CFM | (dB-A) | (g) | |
| LRD50090A12 | 100 | 110 | 133 | 12 | 0.22 | 2800 | 3.5 | 1.0 | 36 | 35 | 315 |
| LRD50090A24 | 24 | 0.12 | |||||||||
| LRD50150A12 | 160 | 170 | 193 | 12 | 0.31 | 2600 | 4.3 | 1.7 | 60 | 39 | 420 |
| LRD50150A24 | 24 | 0.19 | |||||||||
| LRD50190A12 | 200 | 210 | 246 | 12 | 0.60 | 2500 | 4.5 | 2.6 | 91 | 46 | 580 |
| LRD50190A24 | 24 | 0.40 | |||||||||
| LRD50250A12 | 252 | 262 | 298 | 12 | 0.62 | 2400 | 4.8 | 3.0 | 105 | 45 | 640 |
| LRD50250A24 | 24 | 0.40 | |||||||||
| LRD50290A12 | 300 | 310 | 346 | 12 | 0.65 | 2300 | 4.2 | 3.6 | 126 | 43 | 700 |
| LRD50290A24 | 24 | 0.40 | |||||||||
| LRD50350A12 | 360 | 370 | 406 | 12 | 0.75 | 2200 | 3.8 | 3.8 | 133 | 45 | 750 |
| LRD50350A24 | 24 | 0.45 | |||||||||
| LRD50420A12 | 422 | 432 | 468 | 12 | 0.75 | 2000 | 3.6 | 4.0 | 140 | 46 | 800 |
| LRD50420A24 | 24 | 0.45 | |||||||||
