12V DC Brushless Fans / 43x150mm Cross-flow Fans , DC Elev
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

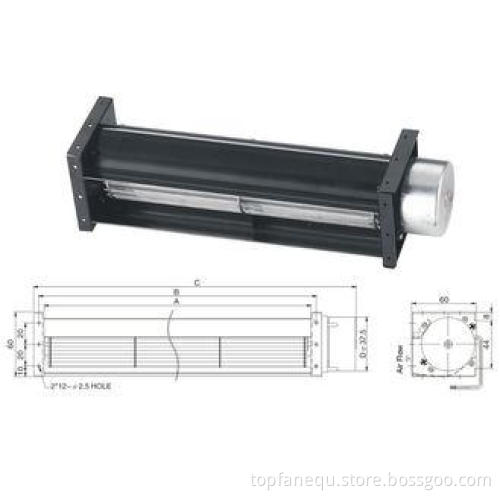

12V DC Brushless Fans / 43x150mm Cross-flow Fans , DC Elevator Fans
12V DC Brushless Fans , high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.
Specification
| Model 43P | Size(mm) | Rated voltage | Rated Current | Speed | Max Static Pressure | Air Flow | Noise Level | Weight | |||
| A | B | C | (v) | (A) | (rpm) | (mmAq) | (m3/mim) | CFM | (dB-A) | (g) | |
| LRD43090A12 | 98 | 108 | 434 | 12 | 0.22 | 2800 | 1.8 | 0.8 | 24 | 36 | 210 |
| LRD43090A24 | 24 | 0.18 | |||||||||
| LRD43150A12 | 160 | 170 | 195 | 12 | 0.15 | 2500 | 1.2 | 1.2 | 42 | 37 | 260 |
| LRD43150A24 | 24 | 0.25 | |||||||||
| LRD43190A12 | 198 | 208 | 239 | 12 | 0.33 | 2400 | 1.0 | 1.5 | 53 | 39 | 300 |
| LRD43190A24 | 24 | 0.22 | |||||||||
| LRD43240A12 | 250 | 260 | 306 | 12 | 0.42 | 2700 | 1.1 | 2.2 | 78 | 43 | 490 |
| LRD43240A24 | 24 | 0.30 | |||||||||
| LRD43290A12 | 300 | 310 | 316 | 12 | 0.50 | 2600 | 1.0 | 2.5 | 85 | 43 | 530 |
| LRD43290A24 | 24 | 0.30 | |||||||||
| LRD43350A12 | 360 | 370 | 416 | 12 | 0.55 | 2500 | 1.0 | 2.8 | 95 | 45 | 570 |
| LRD43350A24 | 24 | 0.35 | |||||||||
