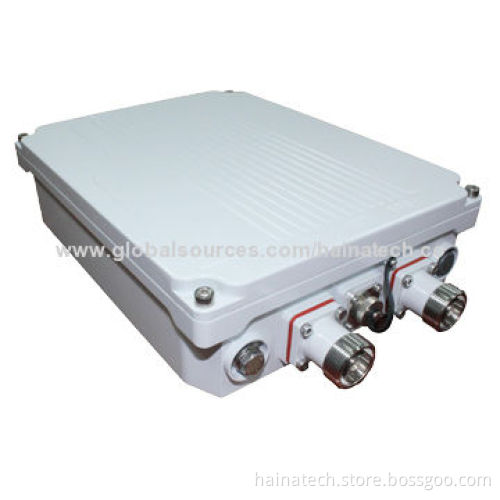

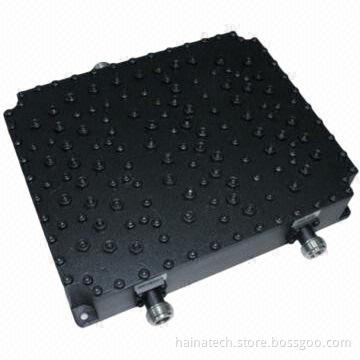

DTMA, Lightning Protected, High-linearity and Low-noise Performance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Main features:

Double units for easy use with XPol antennas
Supports AISG 1.1 and AISG 2.0
Suitable for antenna RET control according to AISG/3GPP standard
By-pass mode to ensure cell operating in case of DC power down
Built-in lightning protection
Technical data: RX
Frequency range: 890-915MHz
Band width: 25MHz
Gain: 12dB ±1
Gain fluctuation: ±0.4dB type, ±0.6dB (maximum)
Noise figure: 1.5dB type, 1.6dB (maximum)
Group delay: 45 ns (maximum) over any 5MHz in Rx band
Return loss in by-pass mode: 17dB (minimum)
Return loss in normal mode: 19dB (minimum)
Maximum input power: <12dBm
Insert loss in by-pass mode: 2.5dB type, 2.8dB (maximum)
Impedance: 50Ω
Output 1-dB compression point: 20dBm (minimum) TX
Frequency range: 935-960MHz
Band width: 25MHz
Insert loss: 0.40dB type, 0.60dB (maximum)
Return loss: 20dB (minimum)
Group delay: 45 ns maximum over any 5MHz in Rx band
Average power: 200W
Maximum Power: 2.5kW
Intermodulation products in RX band: <-107dBm (2 Tx carriers at + 43 dBm) (power up)
Environment characteristics:
- Operating temperature range: –40-+65°C
