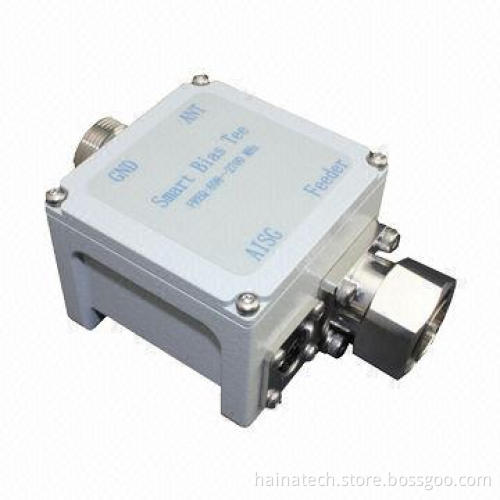

Smart Bias Tee

Get Latest Price

Payment Type:: T/T, L/C, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Combines the performance of a standard bias tee with the function of an additional modem (AISG standard) in order to provide either DC voltage as well as remote control signals via an RF feeder cable to a TMA or RCU

The smart bias tee provides low RF signal insertion loss from port 1 to port 2 and vice versa

The measures taken to protect against static discharge and lightning ensure a high-level of reliability and operating safety

The smart bias tees are designed to operate under the environment conditions as described in ETS 300 019-1-4 class 4.1E and have passed environment tests as recommended in ETS 300 019-2-4

The installation team must be properly qualified and also be familiar with the relevant national safety regulations

The coupling torque at 7-16 connectors is 25–30nm

Hold the smart bias tee housing securely while tightening the 7-16 locking nut

The tightening torque for fixing the AISG connector must be 0.5–1.0nm (hand-tightened)
