Product Description

Description:

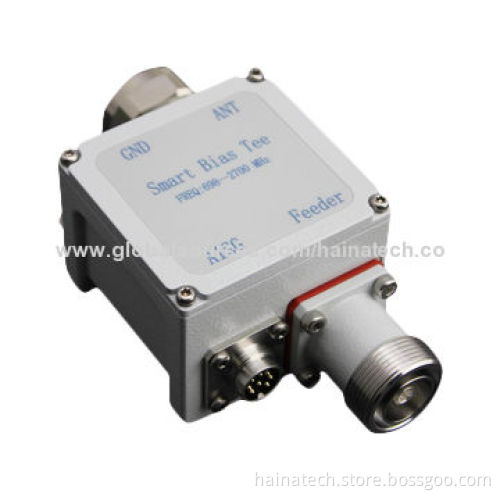

The smart bias tee combines the performance of a standard bias tee with the function of an additional modem (AISG standard) in order to provide either DC voltage as well as remote control signals via an RF feeder cable to a TMA or RCU
The smart bias tee provides low RF signal insertion loss from port 1 to 2 and vice versa
The measures taken to protect against static discharge and lightning ensure a high-level of reliability and operational safety

Technical data:

Frequency range: 698-2,700MHz
Insertion loss: port 1-2 <0.05dB (698-2,700MHz)
Isolation for DC and RCU signals:
- Port 1-2: >70dB
- Port 1 DC/RCU: >70dB
- Port 2 DC/RCU: >0dB
VSWR: <1.10 (698-2,700MHz)
Impedance: 50Ω
Port 1 or 2: <750W (698-2,700MHz)
Port DC/RCU: <2.5A/+10, +30V DC
Power consumption:
- Typically: 0.6W
Lightning protection: 3kA, 10/350us pulse
Intermodulation products: <–160dBc (3rd order; with 2 x 20W)
Temperature range: –40-60°C
Modem carrier frequency: 2.176MHz
Applications: indoor or outdoor (IP66)
Weight: 0.65kg
Dimensions (W x H x D): 141.3x70x55mm
