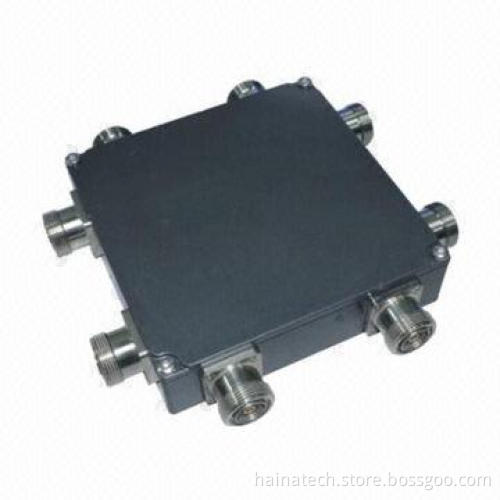

3dB Hybrid Unit, 4 Input/4 Output 800-2,700MHz High-inter-modulation
- Payment Type:
- T/T, L/C, Western Union, PayPal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T, L/C, Western Union, PayPal |
|---|
Product Description
Product Description
- Frequency range: 800-2,700MHz
- Insertion loss: ≤6.8dB
- Return loss/VSWR: ≤20dB/1.22
- Isolation: ≥20dB
- Intermodulation: ≤150dBc (3rd order with 2 x 20W)
- Power handling: 500W
- Impedance: 50Ω
- Dc/AISG transparency: DC path in 1-out 1, in 2-out 2 DC
- Dc/AISG transparency: DC path in 3-out 3, in 4-out 4 (maximum 6.5A AISG 2.0 conform)
- Lightning protection NA
- Operating temperature range -10 to 65°C
- Storage temperature range -40 to 80°C
- Relative humidity range: 5-95% RH
- Applications: indoor or outdoor (IP66)
- Connectors 8 pieces of N-female
- Dimensions: 153 x 153 x 39mm (without connectors)
- Weight: 2.21kg
- Packing: 1 piece/box
