Embedded Board Computer, Onboard CPU & Memory & 1GB DOM, DOS/98/2000/XP/WIN CE, 5V DC IN, PC104 SBC

Embedded Board Computer, Onboard CPU & Memory & 1GB DOM, DOS/98/2000/XP/WIN CE, 5V DC IN, PC104 SBC

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

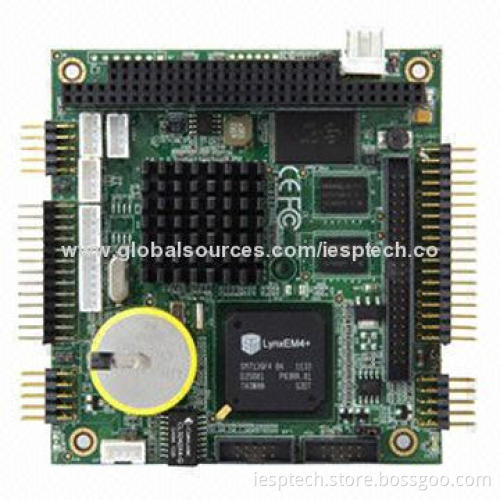

IESP-6207(LAN/4C/3U)

PC104 industrial SBC

System:

Processor: Onboard Vortex86DX, 600MHz CPU
Memory: Onboard 256MB DDR2 memory
Disk A: Onboard 2MB flash (with DOS6.22 OS)
Disk C: Onboard 1GB DOM
BIOS: AMI BIOS
Watch dog: Support
Systems: DOS6.22/7.1, WinCE5.0/6.0, Win98/2000/XP, Linux

Display:

Graphics: Volari Z9S
Display memory: 64MB DDR2 video memory
Display interface: LVDS, VGA, TFT LCD

Interface on board:

VGA : 1 x VGA (Up to 1280x1024)
LVDS: 1 x LVDS
USB2.0 : 3 x USB2.0
USB1.1 : 1 x USB1.1 (only in DOS )
IED : 1 x IED (UtraDMA-100/66/33)
COM: 3 x RS-232, 1 x RS232/RS485
Parallel port: 1 x parallel port (or 1 x 16 Bit GPIO)
PS/2: 1 x PS/2 KB, 1 x PS/2 MS
Audio: 1 x audio(line-in/line-out/mic)
PWM: 16 x PWM
Network interface: 1 x RJ45(10/100Mbps)
Audio interface: line-out, mic-in (optional)
Expansion: 1 x PC104 (16Bit ISA)

Other features:

Power supply: 5V DC in
Operating temperatures: -20 - 70 degree Celsius
Storage temperatures: -40 - 85 deg. C
Relative humidity range: 0-95% RH relative humidity, non-condensing
Dimensions: 96 x 90 (mm)

Processor: Onboard Vortex86DX, 600MHz CPU

Memory: Onboard 256MB DDR2 memory

Disk A: Onboard 2MB flash (with DOS6.22 OS)

Disk C: Onboard 1GB DOM

BIOS: AMI BIOS

Watch dog: Support

Systems: DOS6.22/7.1, WinCE5.0/6.0, Win98/2000/XP, Linux

Graphics: Volari Z9S

Display memory: 64MB DDR2 video memory

Display interface: LVDS, VGA, TFT LCD

VGA : 1 x VGA (Up to 1280x1024)

LVDS: 1 x LVDS

USB2.0 : 3 x USB2.0

USB1.1 : 1 x USB1.1 (only in DOS )

IED : 1 x IED (UtraDMA-100/66/33)

COM: 3 x RS-232, 1 x RS232/RS485

Parallel port: 1 x parallel port (or 1 x 16 Bit GPIO)

PS/2: 1 x PS/2 KB, 1 x PS/2 MS

Audio: 1 x audio(line-in/line-out/mic)

PWM: 16 x PWM

Network interface: 1 x RJ45(10/100Mbps)

Audio interface: line-out, mic-in (optional)

Expansion: 1 x PC104 (16Bit ISA)

Power supply: 5V DC in

Operating temperatures: -20 - 70 degree Celsius

Storage temperatures: -40 - 85 deg. C

Relative humidity range: 0-95% RH relative humidity, non-condensing

Dimensions: 96 x 90 (mm)
