Product Description

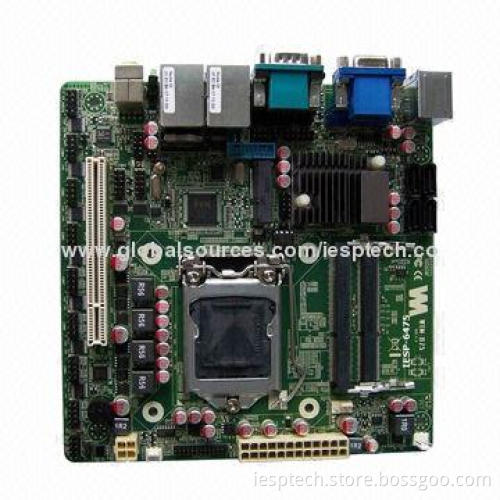

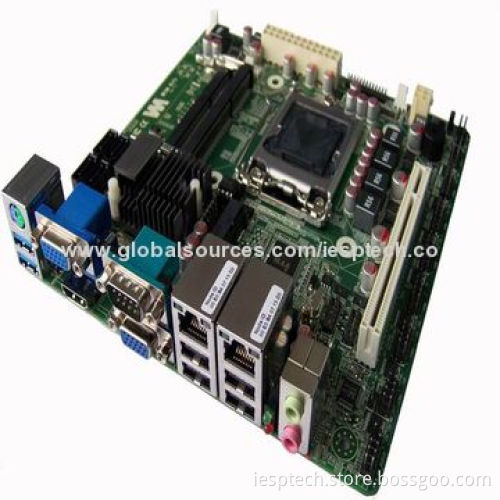

IESP-6475(2GLAN/10C/12U)

MINI-ITX Industrial CPU Board

System:

Processor: supports Intel Core i7/i5/i3
Chipset: Intel B75 Chipset
Memory: 1* DDR3 SO-DIMM socket, maximum up to 8GB memory
BIOS: AMI 32MB BIOS, ACPI supported
Watch dog timer: supported

Display:

Graphics core: according to CPU
Display memory: DVMT dynamic video memory
Display interface: HDMI, 2xVGA multi-display interface
Dual-Display: supported

Ethernet:

Network chip: Realtek RTL8111E Gigabit LAN controller
Network interface: 2 x RJ45 GLAN

Audio:

Codec: Realtek ALC662 HD audio
Audio interface: line-out,mic-in

Storage interface:

SATA: 4 x SATA,1 x mini SATA

I/O interface (embedded):

GPIO: 8-channel programmable digital I/O
PCI: 1x PCI
PLT: 1 x LPT
USB: 4 x USB2.0
USB: 2 x USB3.0
COM: 9 x RS-232
Mini-SATA: 1 x Mini-SATA
Power: 1 x ATX

I/O interface (rear):

HDMI: 1 x HDMI

VGA: 2 x VGA
USB: 4 x USB2.0
USB: 2 x USB3.0
COM: 1x COM
LAN: 1 x RG45 GLAN
Audio: 1 x Audio(line-out/mic)

Other features:

Power supply: ATX Power in
Operating temperature: -20-60°C
Storage temperature: -40-80°C
Relative humidity: 0-95% RH,non-condensing
Dimensions: 170 x 170mm

Processor: supports Intel Core i7/i5/i3

Chipset: Intel B75 Chipset

Memory: 1* DDR3 SO-DIMM socket, maximum up to 8GB memory

BIOS: AMI 32MB BIOS, ACPI supported

Watch dog timer: supported

Graphics core: according to CPU

Display memory: DVMT dynamic video memory

Display interface: HDMI, 2xVGA multi-display interface

Dual-Display: supported

Network chip: Realtek RTL8111E Gigabit LAN controller

Network interface: 2 x RJ45 GLAN

Codec: Realtek ALC662 HD audio

Audio interface: line-out,mic-in

SATA: 4 x SATA,1 x mini SATA

GPIO: 8-channel programmable digital I/O

PCI: 1x PCI

PLT: 1 x LPT

USB: 4 x USB2.0

USB: 2 x USB3.0

COM: 9 x RS-232

Mini-SATA: 1 x Mini-SATA

Power: 1 x ATX

VGA: 2 x VGA

USB: 4 x USB2.0

USB: 2 x USB3.0

COM: 1x COM

LAN: 1 x RG45 GLAN

Audio: 1 x Audio(line-out/mic)

Power supply: ATX Power in

Operating temperature: -20-60°C

Storage temperature: -40-80°C

Relative humidity: 0-95% RH,non-condensing

Dimensions: 170 x 170mm
