3.5" embedded board computer, D525/N450 CPU, Onboard 1GB Memory, 4 x COM, 2 x GLAN, 1xPCI104

3.5" embedded board computer, D525/N450 CPU, Onboard 1GB Memory, 4 x COM, 2 x GLAN, 1xPCI104

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

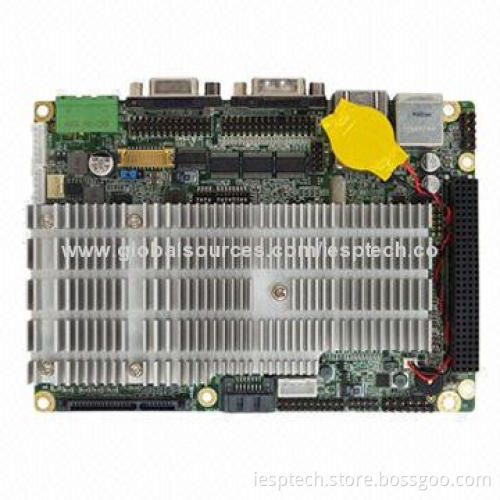

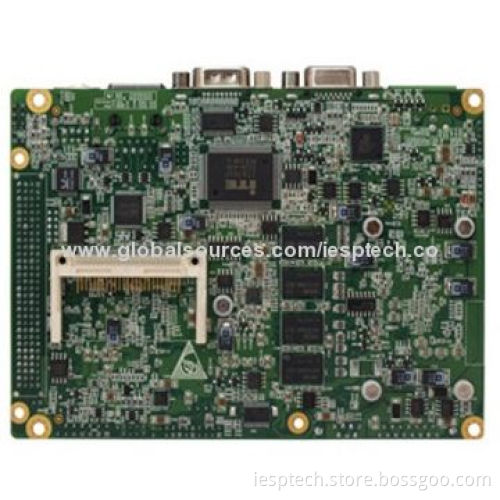

IESP-6324(GLAN/4C/6U)

3.5" Industrial Motherboard

Specifications

System:

• Processor: Onboard Intel Atom D525/N450 CPU
• Chipset: Intel82801GBM I/O controller Hub 8 (ICH8-M)
• Memory: Onboard 1GB DDR2 Memory
• BIOS: AMI 8M BIOS, ACPI supported
• Watch dog timer: 1-65535 seconds/minute

Display:

• Graphics Core: Integrated GMA3150 display core
• Display memory: DVMT dynamic video memory
• Display interface: LVDS, VGA
• Asynchronous dual-display: Support

Ethernet:

• Network interface: 1 x RJ45(10/100/1000Mbps)

Audio:

• Processor: Onboard Intel Atom D525/N450 CPU

• Chipset: Intel82801GBM I/O controller Hub 8 (ICH8-M)

• Memory: Onboard 1GB DDR2 Memory

• BIOS: AMI 8M BIOS, ACPI supported

• Watch dog timer: 1-65535 seconds/minute

• Graphics Core: Integrated GMA3150 display core

• Display memory: DVMT dynamic video memory

• Display interface: LVDS, VGA

• Asynchronous dual-display: Support

• Network interface: 1 x RJ45(10/100/1000Mbps)

Storage interface:

• SATA: 2 x SATA-300, 1 x CF

I/O interface(embedded):

• GPIO: 8-channel programmable digital I/O
• LVDS: 1 x LVDS 18 bit, Single channel
• USB: 4 x USB2.0
• COM: 3 x RS-232, 1 x RS232/RS485
• Parallel port: 1 x Parallel port
• Audio: 1 x Audio(line-in/line-out/mic)
• PCI104: 1 x PCI104

I/O interface(rear):

• Power: 1 x Power in interface
• VGA: 1 x VGA
• PS/2: 1 x mini-DIN PS/2 for MS & KB
• USB: 2 x USB2.0
• LAN: 1 x RJ45

Other features:

• Power supply: 12V DC IN

• Operating temperature: -20 - 60 deg. C

• Storage temperature: -40 - 80 deg. C

• Relative humidity: 0-95% RH relative humidity, non-condensing

• Dimensions: 146 x 102 (mm)

• SATA: 2 x SATA-300, 1 x CF

• GPIO: 8-channel programmable digital I/O

• LVDS: 1 x LVDS 18 bit, Single channel

• USB: 4 x USB2.0

• COM: 3 x RS-232, 1 x RS232/RS485

• Parallel port: 1 x Parallel port

• Audio: 1 x Audio(line-in/line-out/mic)

• PCI104: 1 x PCI104

• Power: 1 x Power in interface

• VGA: 1 x VGA

• PS/2: 1 x mini-DIN PS/2 for MS & KB

• USB: 2 x USB2.0

• LAN: 1 x RJ45
