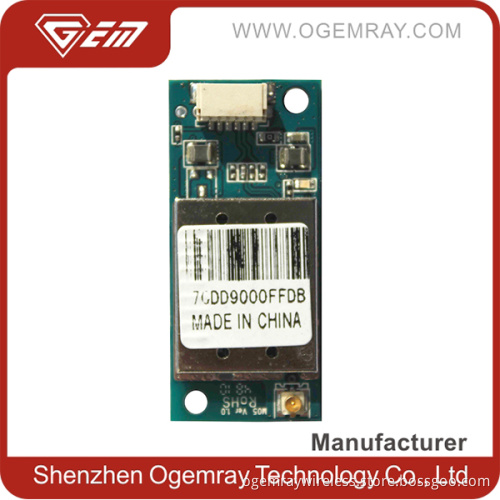

Rt3070 150Mbps USB WiFi Module for Android TV Box

Description:

5.0V 11n RT3070 150mbps usb wifi module for Android TV Box

Main Chipset: RT3070

IEEE 802.11b/g/n compliance

USB 2.0/1.1

2.4GHz,ISM band

Peak rate 150Mbps

External 50 ohm antenna via an I-PEX receptacle

LED light shows link/activity

WEP 64/128/152bit , WPA, WPA2, WPS

Windows CE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X

Unit Size:40.0x18x8.8(pin height)mm


      Main Features:

          802.11b,1,2,5.5,11mbps;802.11g:6,9,12,24,36,48,54 Mbps
          802.11n:(20Mhz) MCS0-7,Support up to 72Mbps
          (40Mhz) MCS0-7,Support up to 150mbps
          OFDM:Peak Rate 150mbps,Peak throughput 90mbps
          Power Management
          Security support for 64/128 WEP, WPA, WPA2, TKIP, AES


Introduction:


GWF-3M05 is a WLAN module supporting IEEE 802.11 b/g/n standards with 6-pin connector
supporting USB 2.0 interface. This is a low cost compact WLAN module designed in products
with embedded system for the wireless connectivity. This Module is designed to operate in
2.4GHz ISM frequency band, it applies a highly integrated MAC/BBP and RF single chip RT3070
with 150Mbps PHY rate supporting. It fully complies with IEEE802.11n draft 3.0 and
IEEE802.11b/g feature.
