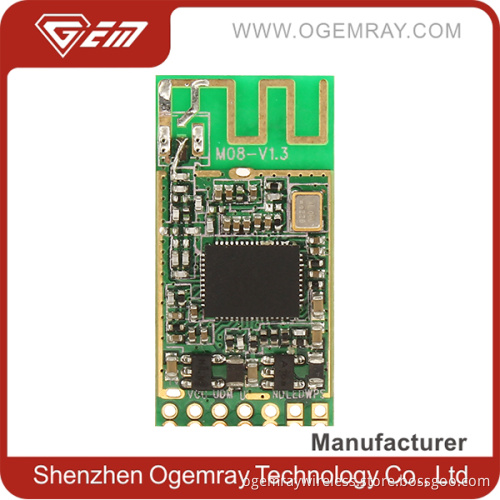

150Mbps Rt5370 5.0V USB Wireless WLAN Module

Description:

150mbps RT5370 5.0V USB wireless WLAN module


Main Chipset: RT5370

IEEE 802.11b/g/n compliance

USB 2.0/1.1

2.4GHz,ISM band

Peak rate 150Mbps

External antenna Via I-PEX MHF receptacle or Built-in On Board

LED light shows link/activity

WEP 64/128/152bit , WPA, WPA2, WPS

Windows CE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X

Unit Size:28.0x15.2x8.8(pin height)mm


       Main Features:

          802.11b,1,2,5.5,11mbps;802.11g:6,9,12,24,36,48,54 Mbps
          802.11n:(20Mhz) MCS0-7,Support up to 72Mbps
          (40Mhz) MCS0-7,Support up to 150mbps
          OFDM:Peak Rate 150mbps,Peak throughput 90mbps
           Security support for 64/128 WEP, WPA, WPA2, TKIP, AES
        Operates in 2.4GHz frequency bands. Power Management
        WPS and TX external control, WiFi direct supported.


Introduction:

GWF-3M08 is a WLAN module supporting IEEE 802.11 b/g/n standards with 6-pin connector
supporting USB 2.0 /1.1 interface. This is a small form factor and low cost compact WLAN
module designed for the wireless connectivity of products with embedded system.

This module operates in 2.4GHz ISM frequency band, it applies a highly integrated MAC/BBP
and RF single chip RT5370 with 150Mbps PHY rate supporting. This module can be built-in
other embedded applications such as IP Camera, IP set top box, GPS, Internet radio apparatus,
it can be directly soldered on a main PCB.
