High Power 2.4GHz RF USB WiFi Module

High Power 2.4GHz USB RF WiFi module


Introduction

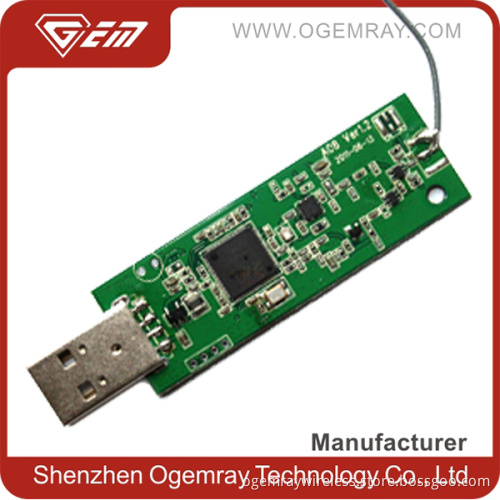

GWF-PA08 is a high power WLAN module supporting IEEE802.11b/g/n standards, its flexible DATA and RF interface design allows it can be used in many dfferent applications which a further wireless connection is required.
This low cost compact WLAN module is designed for the wireless connectivity of products with embedded system. It operates in 2.4GHz ISM frequency band, applies a highly integrated MAC/BBP and RF single chip RT3070 with 150Mbps PHY rate supporting.

2. Specification Overview:

Standards:IEEE802.11b/g & 802.11n (1T1R mode)
Operating Frequency: 2.412GHz ~ 2.4835GHz , ISM band
Protocols:  802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Antenna: External 50 ohm antenna via cable or SMA connector
Security: 64/128 WEP, WPA, WPA2, TKIP, AES
Transmit Output Power (Typical on board):
11b: 26±1.0dBm at 11Mbps
11g: 23±1dBm at 54Mbps
802.11n: (HT20), 22+/-1dBm, 802.11n: (HT40), 21+/-1dBm
Receive Sensitivity (Typical):
11b: -88dBm at 11Mbps; 11g: -76dBm at 54Mpbs.
802.11n: (HT20), -75dBmatMSC7, (HT40),-73dBmatMSC7
Operating Voltage:5.0VDV± 5%
Operating Current: <320mA
USB : USB 2.0/USB1.1
USB Interface: 6-pin(2.0mm)or 4-Pin(2.54,2.0mm) pitch pin header or Mini
USB or Type A USB connector


2.2 Mechanical Information

2.2.1 OUTLINE and Connection Interface (Picture are for reference only)

        Dimension(mm):


             RF output:


2.3 Hardware Information

2.3.1 Block Diagram





2.3 Software and system Information

Operation System:Linux 2.4/2.6/ Andriod, Windows 2000/XP/Vista, Windows CE 5.0/6.0, Mac OS X       10.3/10.4/10.5/10.6

CPU Supplier: ARM, MIPSII, X86 Platform, ARM, MIPSII, N/A

Driver: All of them are Avriable
