Precise Compressed Air Filter for Food Industry
-
$95.8050-99 Piece/Pieces
-
$92.80≥100 Piece/Pieces
- Port:
- Yantian, Shekou, Nansha
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 500PCS Per Days |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB,EXW,CIF,CFR |
| Port: | Yantian,Shekou,Nansha |
Feature & Benefit
* Maxi.working pressure: 16 bar (232CFM),Maxi.working temperature: 80℃
* Rc1/2" to Rc 4" BSP connection, 1m³/min to 48 m³/min capacity
* Ball Valve for Water Drain System,Instead ofn auto drain trap, avoid unexpected blockages
* Internal & External with anti-corrision treatment
* Removed particles dust diameter up to 0.01 Micron, Oil residual content less than 0.003mg/m³
Filter Element Grades
-PF (5 μm) pre-filter
-AO (1 μm) precise air filter
-AA (0.01 μm) Ultra air filter
-AX (0.01 μm) After-filter
-ACS (0.003mg/m³) Activated Carbon, removed oil aerosol and vapour
-AR (1 μm), removed dust particle only
-AAR (0.01 μm), removed dust particle
Product Picture
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.

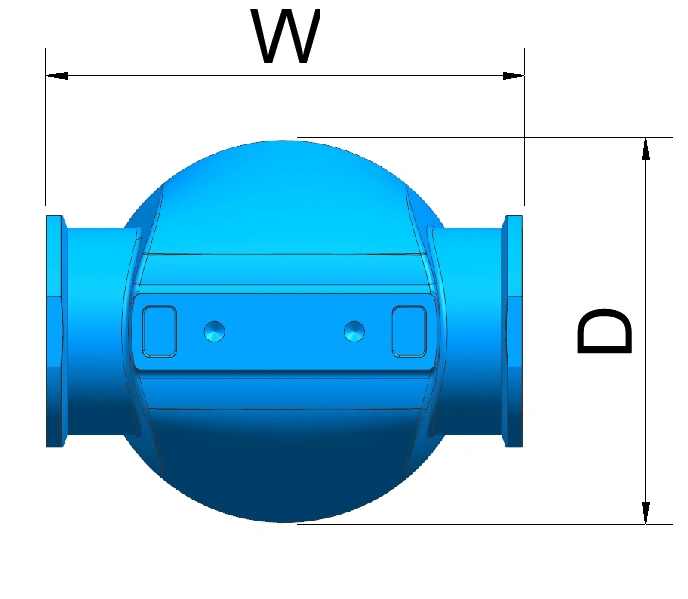

| Model | Pipe size | Flow rates | Dimension (mm) | |||||||
| L/S | m³/min | scfm | W(Width) | D(Depth) | H(Height) | A | B | C | ||
| YF-B010 | RC1/2" | 16.7 | 1.0 | 35.5 | 96 | 79 | 245 | 29 | 223 | 118 |
| YF-B020 | RC3/4" | 25.0 | 1.5 | 53.0 | 96 | 79 | 245 | 29 | 223 | 118 |
| YF-B030 | RC3/4" | 30.0 | 1.8 | 63.6 | 96 | 79 | 274 | 29 | 257 | 153 |
| YF-B040 | RC1" | 33.3 | 2.0 | 71.0 | 96 | 79 | 274 | 29 | 257 | 153 |
| YF-B060 | RC1" | 60.0 | 3.6 | 127.0 | 138 | 111 | 349 | 37 | 421 | 303 |
| YF-B070 | RC1" | 83.3 | 5.0 | 177.0 | 138 | 111 | 450 | 37 | 421 | 303 |
| YF-B080 | RC1-1/2" | 125.0 | 7.5 | 265.0 | 138 | 111 | 450 | 37 | 421 | 303 |
| YF-B090 | RC2" | 166.7 | 10.0 | 353.1 | 174 | 142 | 558 | 58 | 500 | 467 |
| YF-B100 | RC2-1/2" | 216.7 | 13.0 | 459.0 | 174 | 142 | 558 | 58 | 780 | 794 |
| YF-B110 | RC2" | 283.3 | 17.0 | 600.0 | 174 | 142 | 838 | 58 | 780 | 794 |
| YF-B120 | RC2-1/2" | 316.7 | 19.0 | 671.0 | 174 | 142 | 838 | 74 | 571 | 514 |
| YF-B130 | RC3" | 416.7 | 25.0 | 883.0 | 220 | 184 | 616 | 74 | 571 | 514 |
| YF-B140 | RC4" | 466.7 | 28.0 | 989.0 | 220 | 184 | 616 | 74 | 571 | 514 |
| YF-B150 | RC3" | 683.3 | 41.0 | 1448.0 | 220 | 184 | 892 | 74 | 828 | 764 |
| YF-B160 | RC4" | 800.0 | 48.0 | 1695.0 | 220 | 184 | 892 | 74 | 828 | 764 |
| Technical requirements | Maxi. operating pressure: 16 barg Operating temperature: 1.5°C~80°C | |||||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |

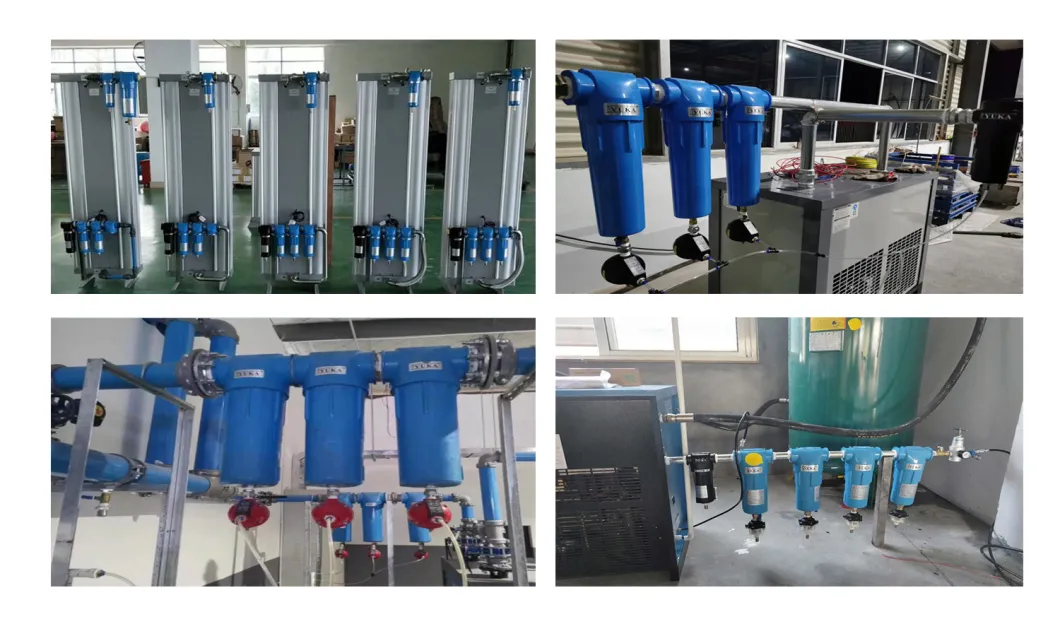

Product Application
YUKA CE & ISO9001-2015 Certificate

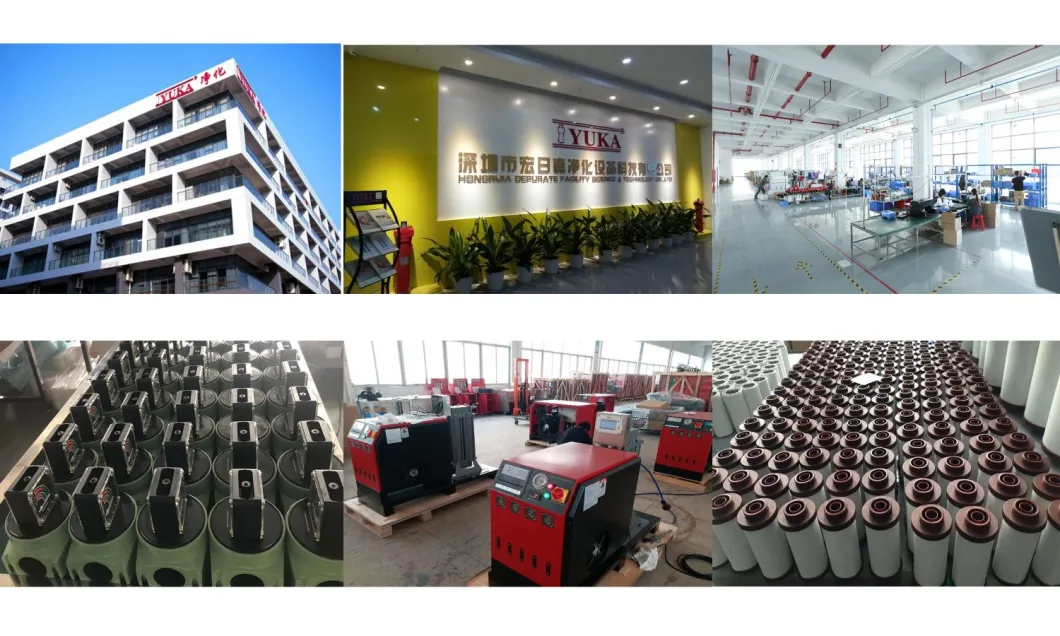

YUKA Factory
YUKA Attended Exhibitions in ComVac Asia & Hannover Messe
YUKA service:
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 24 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
-
