0.01micron Compressed Air Filter
-
$41.641-19 Piece/Pieces
-
$40.81≥20 Piece/Pieces
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | CHINA |
|---|---|
| Supply Ability: | 500PCS Per Days |
| Payment Type: | L/C,T/T |
| HS Code: | 8421399090 |
| Port: | Shenzhen |
Product Description
Product Description
YUKA Rc1/4" flow rate 0.3m3/min DT Series High Efficiency Energy Saving Compressed Air Filters DT009
About Compressed Air:
Compressed air is the second-largest power source after electricity, and it has a multi-purpose process gas source. The unfiltered and separated
compressed air contains a considerable amount of water, solid particles, dust, oil mist, bacteria and other pollutants. These pollutants have a certain
impact on the profitability and production costs of the factory. In order to maintain the competitive advantage of the factory, It is necessary to implement
sustainable measures and apply quality-assured purification equipment.
Product Advantages:

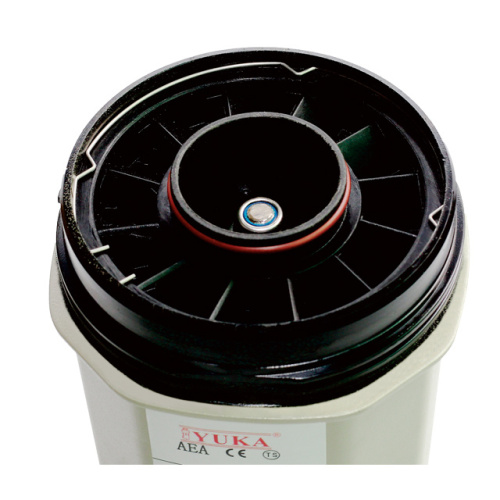

1. The filter element adopts imported advanced filter materials and stainless steel support net to prevent secondary pollution and the
particle interception effect is more than 99%.
2. Without tie-rod design and Circlip design, easy to replace the element.

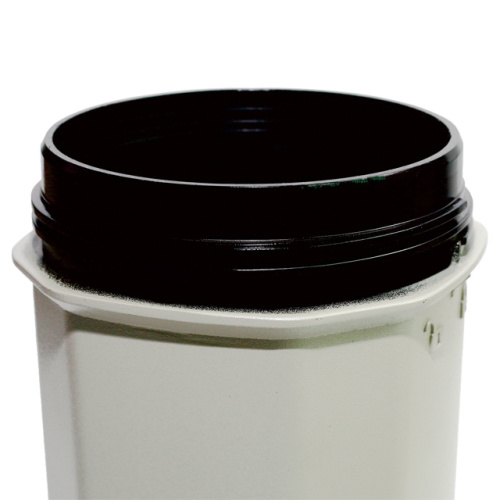

3. The shell is made of aluminum alloy by die-casting and has a compact structure to ensure safe use.
4. All shells are cleaned, degreased and specially anti-corrosion treated before spraying to improve durability and
can be applied to offshore platform operations.

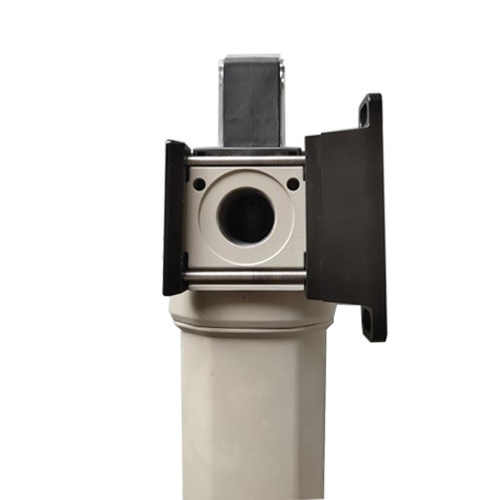

5. The precise threaded interface makes installation and maintenance easier and more convenient.

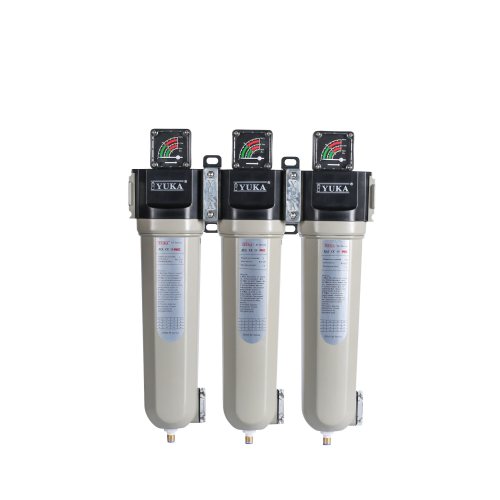

6. The parallel connection of the body can reduce the installation and maintenance space.
8. Under the working condition of 1.5-80 ºC and 1.0MPa pressure, the body is guaranteed to be used for 15 years,
and the service life of the filter element is 6000-8000 hours.
Technical Specification:
The flow rate below is the treatment capacity of compressed air under rated working pressure 7bar g(100psi g). For the application in other working
pressure, please refer to the correction factors.
DT series filter element grade and performance:
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Product are tested with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard ISO8573.1-2010
quality standard, and provide filter performance test report.
purification & separation industry to service our brand customers like below:
YUKA attended Exhibitions in Shanghai Comvac Asia & Germany Hannover Messe:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
About Compressed Air:
Compressed air is the second-largest power source after electricity, and it has a multi-purpose process gas source. The unfiltered and separated
compressed air contains a considerable amount of water, solid particles, dust, oil mist, bacteria and other pollutants. These pollutants have a certain
impact on the profitability and production costs of the factory. In order to maintain the competitive advantage of the factory, It is necessary to implement
sustainable measures and apply quality-assured purification equipment.
Product Advantages:
1. The filter element adopts imported advanced filter materials and stainless steel support net to prevent secondary pollution and the
particle interception effect is more than 99%.
2. Without tie-rod design and Circlip design, easy to replace the element.
3. The shell is made of aluminum alloy by die-casting and has a compact structure to ensure safe use.
4. All shells are cleaned, degreased and specially anti-corrosion treated before spraying to improve durability and
can be applied to offshore platform operations.
5. The precise threaded interface makes installation and maintenance easier and more convenient.
6. The parallel connection of the body can reduce the installation and maintenance space.
8. Under the working condition of 1.5-80 ºC and 1.0MPa pressure, the body is guaranteed to be used for 15 years,
and the service life of the filter element is 6000-8000 hours.
Technical Specification:
The flow rate below is the treatment capacity of compressed air under rated working pressure 7bar g(100psi g). For the application in other working
pressure, please refer to the correction factors.

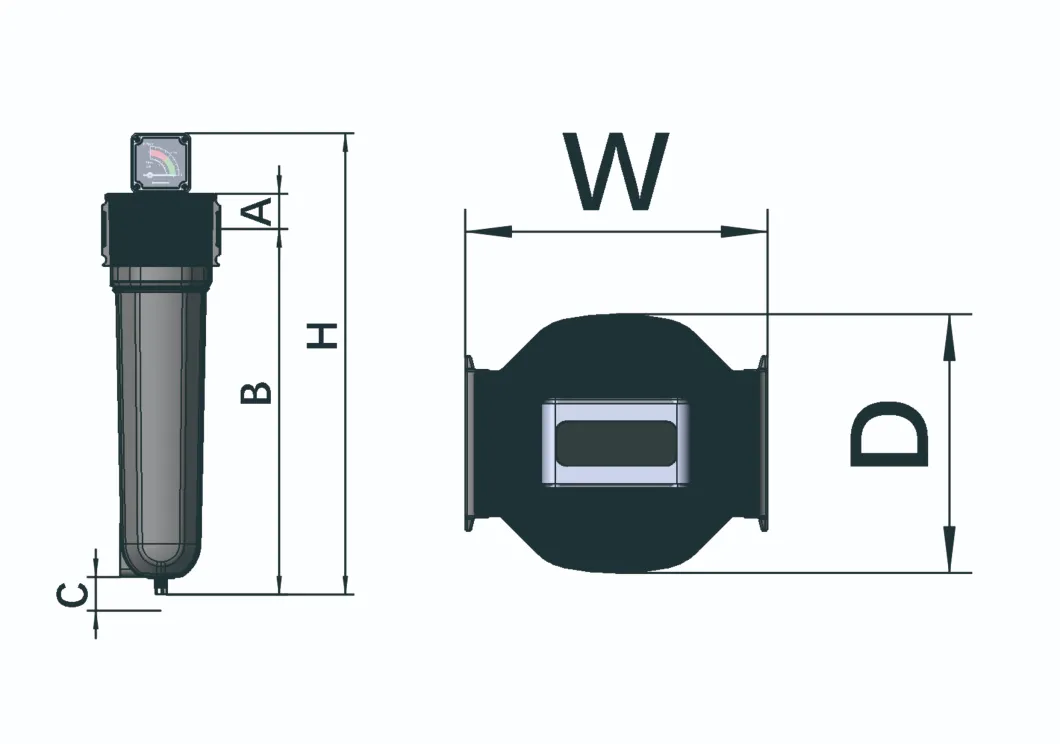

| Model | Pipe size | Flow rates | Dimension (mm) | |||||||
| L/S | m3/min | scfm | W(Width) | D(Depth) | H(Height) | A | B | C(clearance for housing) | ||
| DT009 | RC1/4" | 5.0 | 0.3 | 10.6 | 80.6 | 69.0 | 224.1 | 24.6 | 173.9 | 50.5 |
| DT010 | RC3/8" | 10.0 | 0.6 | 21.2 | 80.6 | 69.0 | 224.1 | 24.6 | 173.9 | 50.5 |
| DT011 | RC1/2" | 20.0 | 1.2 | 42.4 | 108.2 | 93.3 | 275.3 | 30.1 | 220.6 | 53.3 |
| DT012 | RC3/4" | 25.1 | 1.5 | 53.0 | 108.2 | 93.3 | 275.3 | 30.1 | 220.6 | 53.3 |
| DT013 | RC1/2" | 30.1 | 1.8 | 63.5 | 108.2 | 93.3 | 315.3 | 30.1 | 260.6 | 53.3 |
| DT014 | RC3/4" | 33.4 | 2.0 | 70.6 | 108.2 | 93.3 | 315.3 | 30.1 | 260.6 | 53.3 |
| DT015 | RC3/4" | 46.8 | 2.8 | 98.8 | 133.0 | 113.9 | 399.6 | 40.7 | 291.0 | 59.6 |
| DT016 | RC1" | 60.1 | 3.6 | 127.1 | 133.0 | 113.9 | 399.6 | 40.7 | 291.0 | 59.6 |
| DT017 | RC1" | 80.2 | 4.8 | 169.4 | 133.0 | 113.9 | 468.4 | 40.7 | 359.8 | 59.6 |
| DT018 | RC1-1/2" | 100.2 | 6.0 | 211.8 | 133.0 | 113.9 | 468.4 | 40.7 | 359.8 | 59.6 |
| DT019 | RC1-1/2" | 125.3 | 7.5 | 264.8 | 133.0 | 113.9 | 533.7 | 40.7 | 425.3 | 59.6 |
| DT020 | RC2" | 200.0 | 12.0 | 424.0 | 170.0 | 158.3 | 783.1 | 52.9 | 623.0 | 59.6 |
| DT021 | RC2" | 266.7 | 16.0 | 565.3 | 170.0 | 158.3 | 1065.4 | 52.9 | 945.3 | 59.6 |
| DT022 | RC2-1/2" | 316.7 | 19.0 | 671.3 | 170.0 | 158.3 | 1065.4 | 52.9 | 945.3 | 59.6 |
| Technical requirements | Maximum operating pressure: 10 barg Maximum operating temperature: 80°C Minimum operating temperature:1.5°C | |||||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
DT series filter element grade and performance:
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Product are tested with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard ISO8573.1-2010
quality standard, and provide filter performance test report.
Why choose YUKA as your long term business partner?
YUKA's DT series filters are ideal solutions for removing pollutants in compressed air systems and saving energy. Use imported quality filter materials and design
technology to ensure high-quality compressed air quality and lower operating costs. Also we have below advantages.
1. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
2. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
3. ISO 9001:2015, CE and product follow ISO8573-1;
4. With Germany Imported high efficiency filtration Test Instrument;
5.All goods had been 100% test before dispatched.
YUKA has more than 20 years of professional manufacturing and trading experiences in compressed airYUKA's DT series filters are ideal solutions for removing pollutants in compressed air systems and saving energy. Use imported quality filter materials and design
technology to ensure high-quality compressed air quality and lower operating costs. Also we have below advantages.
1. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
2. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
3. ISO 9001:2015, CE and product follow ISO8573-1;
4. With Germany Imported high efficiency filtration Test Instrument;
5.All goods had been 100% test before dispatched.
purification & separation industry to service our brand customers like below:
YUKA attended Exhibitions in Shanghai Comvac Asia & Germany Hannover Messe:
Packing & Shipping:
Packing: Good packing will protect the goods from damage during transport. We use strong, durable packing material to pack the goods.
Shipping: By air,by sea ,by express
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
