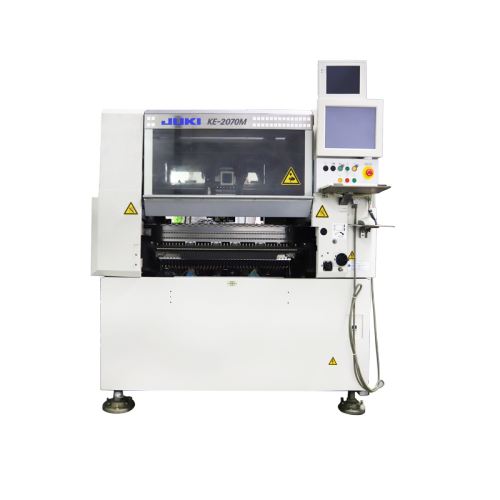

Modified special-shaped plug-in machine JUKI-KE-2070M：

The manual plug-in speed is too slow and the quality is unstable?

The fully automated plug-in machine has invested too much, and now the good news is coming. Shenzhen Kechuang Industrial Co., Ltd.'s subordinate brand sticking and inserting machine is developed to meet the current manual plug-in speed is too slow, difficult to use, and unstable quality. Smt Accessories

Existing placement equipment can be used to achieve automatic plug-ins without affecting placement, saving you money and increasing productivity!DIP Mounter

PCB Max Size: 330×250mm  Feeder Manufacturers
Fixing Rail: Front Fixed
Components height : 5mm
Placement speed: 16,000CPH (IPC 9850)
Feeder inputs : Max. 80 on 8mm T/F6
Power supply : 200 to 415 VAC, 3-phase
Apparent power : 3kVA
Operating air pressure : 0.5±0.05Mpa
Air consumption : 345L/min (Opt.:Vacuum Pump 50L/min)
One multi-nozzle laser head (6 nozzles)
Machine dimensions  : 1,400×1,393×1,455mm
Mass (approximately) : 1,530kg

Features of modified special-shaped plug-in machine JUKI-KE-2070M:

1. Using laser to identify component pins, it is easier to calibrate the pins than a camera to ensure that components are inserted correctly

2. Various feeding devices can be customized according to different components (tape/tube/vibration plate/TRAY)

3. You can choose the feeding device corresponding to the braided components, tube-mounted components, and bulk components

4. With rich experience in nozzle customization, you can quickly customize the nozzles of various components

5. The components that can be automatically plugged in are more extensive, corresponding to various large components, high components, press-in components, etc.

6. More stable, more reliable and more economical than domestic machines

7. Components with a height not exceeding 20MM/25MM can be inserted

8. The service life of the parts is the same as the placement machine

9. Nearly 10,000 units of JUKI KE-2070M in the market, with mature technology

Parameters of JUKI-KE-KE-2070M
 Alien Plug-in：
