S290AJ1-LE2 Innolux 29.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) S290AJ1-LE2 is a 29.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 29.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver0.0 which was released out on 4 7 2017, S290AJ1-LE2 supports display 1920(RGB)×540 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 698.4(W)×196.425(H) mm, outline size of 720.8(W)×226.3(H)×30.2(D) mm, viewing area size of 702.4(W)×200.4(H) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 2.39/2.51/2.64Kgs (Min./Typ./Max.). As a Super MVA, Normally Black, Transmissive LCM product, S290AJ1-LE2 can provides 500 cd/m² display brightness 4500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. S290AJ1-LE2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	S290AJ1-LE2
Panel Brand	Innolux
Panel Size	29.0" (1/2 cut of 32")
Resolution	1920(RGB)×540
Display Area	698.4(W)×196.425(H) mm
Outline Size	720.8(W)×226.3(H) ×30.2(D) mm
Brightness	500 cd/m² (Typ.)
Viewing Angle	88/88/88/88 (Typ.)(CR≥20)
Best View on	Symmetry
Display Colors	16.7M 72% NTSC
Frequency	60Hz
Weight	2.39/2.51/2.64Kgs (Min./Typ./Max.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	702.4(W)×200.4(H) mm
Surface	Antiglare (Haze 1%), Hard coating (3H)
Contrast Ratio	4500:1 (Typ.) (TM)
Display Mode	Super MVA, Normally Black, Transmissive
Response Time	8.5 (Typ.)(G to G)
Lamp Type	WLED , 30K hours , With LED Driver
Touch Screen	Without
Signal Interface	LVDS (2 ch, 8-bit) , 51 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

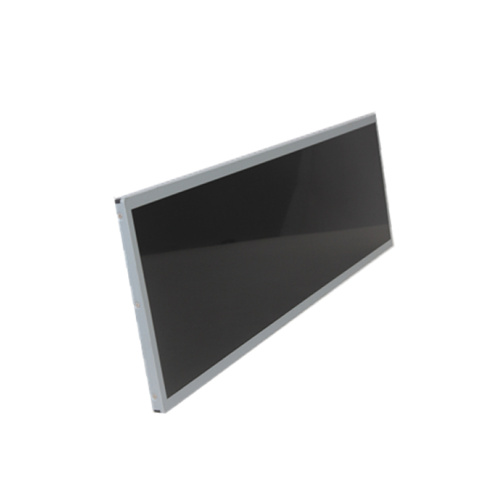

Product Picture:

S290AJ1-LE2
