M270HGE-L30 Chimei Innolux 27.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
M270HGE-L30 is a 27.0 inch diagonal a-Si TFT-LCD display screen product from Chimei Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 27.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev.C1 C2_Ver3.0 which was released out on 9 6 2013, M270HGE-L30 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 630(W)×368.2(H)×14.6(D) mm, viewing area size of 603.9(W)×342.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.53±0.07Kgs. As a TN, Normally White, Transmissive LCM product, M270HGE-L30 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 40K hours, external backlight driver is additionally needed. M270HGE-L30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
M270HGE-L30 |
|
Manufacturer |
Chimei Innolux |
|
Screen Size |
27.0 inch |
|
Pixel Number |
1920(RGB)×1080 (FHD) |
|
Active Area(mm) |
597.888 × 336.312 (H×V) |
|
Bezel Area(mm) |
603.9 × 342.3 (H×V) |
|
Luminance |
300 (Typ.)(cd/m²) |
|
Viewing Angle |
85/85/80/80 (Typ.)(CR≥10) |
|
Color Depth |
16.7M 72% NTSC |
|
Mass |
2.53±0.07Kgs |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
630 × 368.2 × 14.6 (H×V×D) |
|
Treatment |
Antiglare (Haze 25%), Hard coating (3H) |
|
Contrast Ratio |
1200 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
1.5/3.5 (Typ.)(Tr/Td) ms |
|
Backlight |
4 strings WLED , 40K hours , No Driver |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (2 ch, 8-bit) , 30 pins Connector |
|
Voltage Supply |
5.0V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

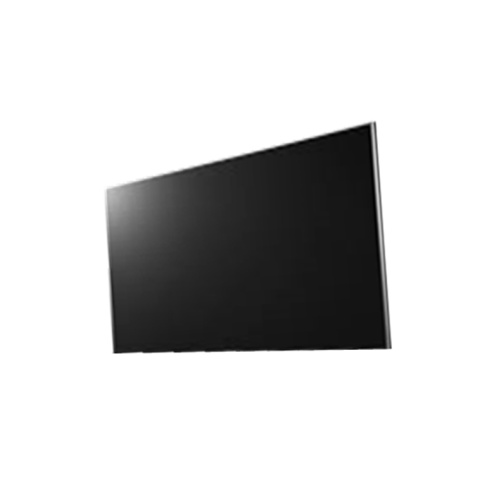

Product Picture:
