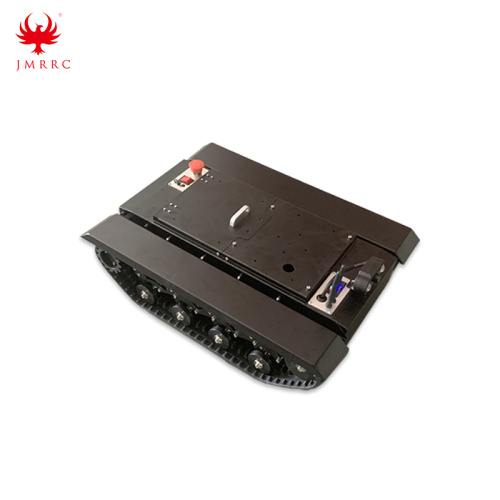

Robot Tank TK50 Smart RC Robotic Tracked Tank Remote Car 50kg Load Rubber Tracks Metal Tank Chassis DC Brushless Motor JMRRC

Specification:

Tank net weight: 23kg

Dimension: L650*W480*H190mm

Battery case size: 230*200*110mm (Max supports for 3pcs of 6S 22000mAh battery)

Max payload weight: 50kg

Body material: 1.5mm stainless steel

Tank motor: Brushless DC motor with incremental encoder

Running speed: 0-2m/s (The running speed depends on the motor speed and voltage.)

Rated power: 300W*2

Rated voltage: 22-26V

Rated current: 25A

Track width: 80mm

Track material: rubber track with built-in tension layer

Maximum obstacle crossing: 100mm

Surface treatment: anti-static coating

Maximum climbing: 40°

Shock absorption design: using 8 groups of independent suspension shock absorbers

Features:

- Light and easy to carry

- Track differential rotation

- Christy suspension

- Indoor and outdoor off-road driving

- Support secondary development

- High precision motor encoder

- Small size, large torque and high performance

TK50 is a caterpillar chassis universal intelligent development. It uses the high carbon steel material, combined with the 8 groups of independent suspension shock absorption system, with high quality rubber tracks embedded tensile kevlar fiber layer, which makes TK50 have the advantages of small size, large torque and high performance. Its universal structure and rich expansion functions are favored and praised by the majority of development users.

Applications: Outdoor autonomous cruise robot, outdoor off-road driving robot, security and explosive-handling robot, fire robot and industrial robot platforms such as shooting, cleaning, agricultural pesticide spraying, disinfection and epidemic prevention, scientific research, education and development.
