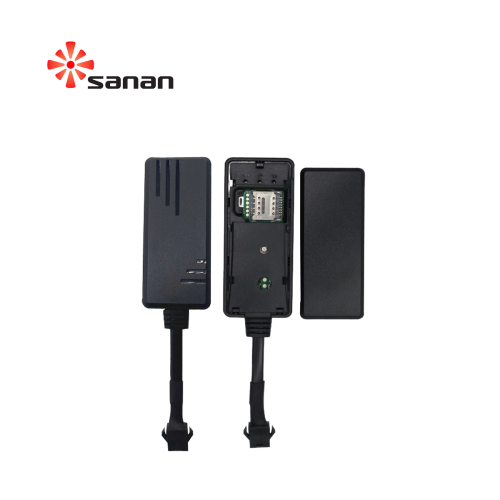

4G LTE Multi-functional Vehicle Gnsstracker SA-G419-W

$25.00 - $28.00/Set/Sets

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Features

• 4G Built-in Antenna, High Integration Design

• 9 - 90V Wide Voltage, Real-time Location Tracking, Track Playback

• Vibration Alarm, Over-speed Alarm, Entry And Exit Electronic Fence Alarm

• Vehicle Engine Start And Turning Off Detection

• Easy Installation, No Need To Press The Power Button, It Will Work Immediately After Power On

• Built-in Backup Battery, Prompt Alarm Will Be Triggered When Being Illegal Removal

• The Device Can Be Connected To A Relay To Realize Remote Oil And Power Cutoff Function

• Gps+beidou+lbs Triple Positioning

Specification	Parameters
Size	803517.5mm
Weight	49g（battery included）
Built-in battery	150mAh（3.7V）
Operating temperature	-20°C to +60°C
Storage temperature	-20°C to +70°C
Sensor	Precision Vibration Sensor
Frequency band	LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
Frequency band	GSM/GPRS/EDGE 850/900/1800/1900Mhz
Maximum output power	EGSM900:33dBm±2dB/5dBm±5dB
	DCS1800:30dBm±2dB/0dBm±5dB
	EGSM900 (8-PSK)：27dBm±3dB/5dBm±5dB
	DCS1800 (8-PSK)：26dBm±3dB/0dBm±5dB
	LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66: 23dBm±2dB/<-39dBm
Dynamic output range	-15~-108dbm
Receive sensitivity	-107dbm
Maximum frequency deviation	±0.1ppm
Sensitivity	Cold start:-145 dbm
	Hot Start:-156 dbm
	Warm start:-145 dbm
	Navigation:-160 dbm
	Track:-162 dbm
First position time	Cold start: 32 seconds on average
GSM antenna	built-in
GPS antenna	built-in
LED indicator	Power, indicating status
Transfer Protocol	TCP
Power detection	Upload alarm information when the main power is disconnected
Data upload	Update GPS data in real time and support customization
Driving behavior detection	When the vehicle speed exceeds the set speed,the device will upload the over-speed alarm
GPS data	Real-time location updates
Vibration alarm	Vehicle vibration report in armed state

GPS Tracking And Locating	4G Network	Supporting 4G Network, 1 Second Efficient Transmission, Faster And More Accurate
	Timing Tracking	Reporting Positioning Information Such As Latitude And Longitude According To The Set Interval
	Over-speed Alarm	The Tracker Will Send An Alarm To Your Mobile Phone When Driving Speed Is Too Fast
	Vibration Alarm	Built-in Vibration Sensor, When The Vehicle Vibrate Continuously, The Device Wil Immediately Send An Alarm Information
	Geo Fence	When The Driving Range Of The Car Exceeds The Specified Area, An Alarm Message Will Be Sent To The Platform
	Historical Track	The Platform Can Play Back Of History Driving Route, Including Speed, Direction And Stay Time, Etc.
	Displacement Alarm	When The Vehicle Is Being Illegal Operation Or Being Theft, Users Can Remotely Cut Off The Oil And Electricity Through The Computer Or Mobile APP
	Fleet Management	One Account Can Monitor Multiple Devices, Or One Device Can Be Monitored By Multiple Accounts
