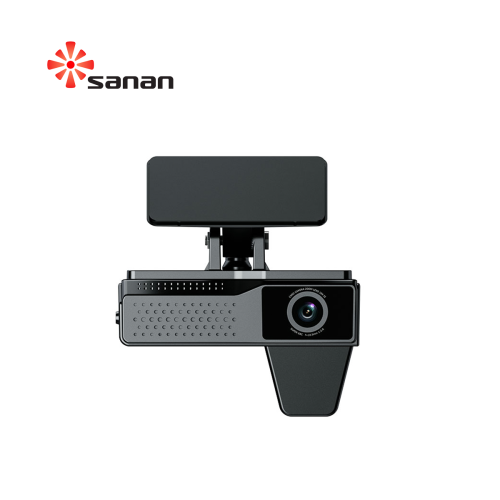

AI intelligent algorithm dash Camera ADAS DMS
-
$125.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Air, Land
- Port:
- HongKong, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 100 |
| Supply Ability: | 100 |
| Payment Type: | T/T,Paypal,L/C |
| Incoterm: | EXW |
| Transportation: | Air,Land |
| Port: | HongKong,Shenzhen |
l Using H.264 or H.265 encoding and decoding;
l N61 supports 1 channel 1080P+2 channels 720P+1 channel AV output;
l N62 supports 1 channel 1080P+3 channels 720P
l Supports 1 TF cards for storage, with a maximum capacity of 1TB per card;
l Support 1 SOS emergency alarm button;
l Support 1 channel of I/O alarm output;
l Support 4 I/O alarm inputs;
l Built in functions such as 4G, WiFi, and GPS;
l Built in 3W speaker and microphone, supporting bidirectional voice intercom between devices and platforms;
l Support mobile apps and platform software to preview videos and configure parameters;
l 1T computing power, standard AI intelligent algorithms: ADAS, DMS, driver facial recognition;
l Supports 2 RS232 channels, 1x5V and 1x12V output;
l Optional 1-channel speed sensor.
2. Product specifications
|
ITEM |
Parameters |
|
|
System |
Language |
Chinese/English/Portuguese/Spanish/Russian/Vietnamese/Mongolian/Thai/Pakistani/French/Korean/Hindi |
|
Operating system |
Linux |
|
|
Menu |
Mobile app: CMSV7, UVIEW |
|
|
Processor |
CPU |
ARM Dual-Core processor@ 1.2GHz，1.0 TOPS computing power |
|
Memory |
Built in DDR 2Gb |
|
|
Flash |
2Gb |
|
|
Video |
Video Input |
Front (built-in) 1080p, D:125 ° H:106 ° V:58° |
|
Rear (built-in) 720p, D:148° H:122° V:63° |
||
|
S62 can pull out 2-channel 720P AHD camera S61 can pull out 1-channel 720P AHD camera |
||
|
Video output |
S61 supports 1 channel AV output |
|
|
Format |
H.264/H.265 |
|
|
Resolution |
1080P, 720P, D1 optional |
|
|
Quality |
Levels 1 to 4 |
|
|
Record Mode |
Default boot recording, supporting ignition recording, alarm recording, etc |
|
|
Audio |
Audio Input |
1 channel audio with built-in digital MIC |
|
Audio output |
1 channel, built-in power amplifier, built-in 3W speaker with sound chamber |
|
|
Format |
G. 711A |
|
|
4G |
Built in 4G, TDD-LTE, FDD-LTE |
|
|
WiFi |
Built in WiFi |
|
|
GPS |
Built in BD/GPS/GLONASS module |
|
|
G-Sensor |
Built in accelerometer |
|
|
SOS alarm button |
Support |
|
|
Alarm In |
Supports 4 alarm inputs |
|
|
Alarm output |
Supports 1 channel of alarm output |
|
|
Power output |
Supports 1 channel of 5V output and 1 channel of 12V output |
|
|
Serial port |
Supports 2-channel RS232. Can be connected to oil level sensors, RFID card readers, alcohol sensors, etc |
|
|
Speed sensor |
Optional 1-channel speed sensor |
|
|
Port |
TF Card |
Supports 1 TF cards, with a maximum support of 1TB per card |
|
Upgrade |
Support TF card upgrade and FTP remote automatic upgrade |
|
|
USB Port |
Type-c |
|
|
SIM Card |
Supports 1 Nano SIM card |
|
|
AI algorithm |
ADAS |
FCW, LDW, HMW, PCW |
|
DSM |
Smoking, making phone calls, yawning, dozing, distracted, driver not detected, blocking cameras, sunglasses identification |
|
|
FR |
Driver facial recognition |
|
|
Power |
Power management |
Adaptive broadband power input with protection functions such as overload, undervoltage, short circuit, and reverse connection; Supports timed on/off and delayed shutdown functions. |
|
Input voltage |
DC:+9V ~ +36V |
|
|
Consumption |
Normal working state ＜ 5W (without peripherals) |
|
|
Environment |
Temperature |
-20℃ to +70℃ |
|
Humidity |
20% to 80% |
|
|
Management |
Password access |
Two level management of user passwords and administrator passwords |
|
Platform access |
JT/T808-2013, JT/T808-2019, JT/T1076-2016, JT/T1078-2016 |
|
|
CMSV6、Wialon、Uffizio |
||
|
Dimension |
114mm*65mm*69mm |
|
