Led display receiving card A8 Model
|
Product Feature:Led display receiving card A8 Model
|
Features
|
Description
|
|
Supporting HDR10
|
A8 can work with the independent
controller MCTRL4K featuring large loading capacity to support HDR10
compliant video input, realizing larger dynamic brightness range and larger
color space, making the image smoother.
|
|
Supporting low latency (Customized
function)
|
A8 can reduce the frame latency
(for the module that the RAM is built within the driver IC) of the video
source on the receiving card end to 1 frame.
|
|
Supporting 18Bit+ grayscale output
|
Enabling of 18 bit mode could
improve LED display grayscale by 4 times, and therefore avoid grayscale loss
caused by brightness reduction and make images finer.
|
|
Supporting ClearView
|
Enable ClearView on NovaLCT to
adjust the texture, size and contrast in different area based on human visual
system to make image more realistic.
|
|
Supporting arbitrary-angle
rotation for the screen
|
Make A8 work together with MCTRL
R5 and then set the screen on SmartLCT to make display rotate at any angel,
show different shapes, and present changeable images.
|
|
Supporting pixel level brightness
and chroma calibration
|
Working with NovaLCT and NovaCLB,
A8 supports brightness and chroma calibration on each pixel.
|
|
Supporting image rotation in 90°increments
(Calibration not supported after rotation)
|
On NovaLCT, the image on the
screen can be set to rotate in the multiples of 90°(90°, 180°, 270° and
360°).
|
|
Supporting quick seam correction
|
Working with NovaLCT, A8 supports
quick adjustment of bright and dark lines, which can remove the seams between
modules and between cabinets.
|
Receiving Card A8
Specifications 3
Features
3.2 Improvement in Maintainability
|
Features
|
Description
|
|
Supporting 3D function
|
On NovaLCT or operation panel of
controllers which support 3D function, you can enable 3D function and set the
3D parameters to make the LED screen display 3D effects.
|
|
Features
|
Description
|
|
Supporting the smart module
(Supported by dedicated firmware
program)
|
The smart module is composed of
Flash and MCU.
Flash could store calibration
coefficients and module information. MCU could communicate with the receiving
card to realize monitoring over temperature, voltage and wiring communication
status for the module. Working with the driver chip, A8 supports open circuit
detection on LED.
The smart module could make
monitoring unit smaller, requiring no independent monitoring card and saving
cabinet space.
|
|
Supporting LVDS transmission
(Supported by dedicated firmware
program)
|
The transmission mode of
low-voltage differential signaling (LVDS) is used, which reduces the number
of data cables that connect the receiving card's HUB board to the module,
increases the transmission distance, improves the signal transmission
quality, and better stabilizes the image output.
|
|
Supporting auto module calibration
|
After the module has been
replaced, the receiving card can automatically read the new module ID and
calibration coefficient which could be saved to calibration system files.
|
|
Supporting Mapping function
|
Enable the Mapping function on
NovaLCT, then the target cabinet will display the cabinet number and Ethernet
port information, and the user could get the receiving card`s location and
wiring route.
|
|
Supporting setting of images
pre-stored of the receiving card
|
On NovaLCT, the specified images could
be set as the screen startup image and images used when the Ethernet cable is
disconnected or no video source signal is available.
|
|
Supporting module Flash management
|
On NovaLCT, lamp panel Flash could
be managed.
|
|
Supporting monitoring voltage and
temperature of itself
|
The voltage and temperature of the
receiving card itself can be monitored without using other peripherals. The
monitoring data can be checked on NovaLCT.
|
|
Supporting LCD module
|
Supports NovaStar's general 5-pin
LCD module.
|
Receiving Card A8
Specifications 3
Features
|
Features
|
Description
|
|
|
The LCD module is connected to the
HUB board to display temperature, voltage, single operating time and total
operating time of the receiving card.
|
|
Support one-click application of
calibration coefficient in module Flash
|
In the event of network outage,
hold down the self- test button to read the calibration coefficient in module
Flash back to the receiving card.
|
3.3 Improvement in Hardware
Reliability
|
Features
|
Description
|
|
Supporting dual-card backup
|
In the high-reliability
environment, single HUB board could be populated with two A8 receiving cards.
In case that the main receiving card fails, the standby one will serve in a
timely manner to ensure normal operation of the display.
|
|
Supporting dual-power backup
detection
|
Two power supplies could be
simultaneously connected, and operating status of the power supplies could be
detected.
|
|
Supporting loop backup
|
HUB`s Ethernet port improves the
reliability for the serial connection of the receiving card through main and
standby redundant mechanism. Among the main and standby serial connection
lines, if one fails, the other will begin to work to ensure the normal
operation of the display.
|
3.4 Improvement in Software
Reliability
|
Features
|
Description
|
|
Supporting readback of firmware
version
|
On NovaLCT, the firmware versions
of the receiving card can be read back.
|
|
|
Product images provided in this file
are for reference only, and the actual products shall prevail.
Models of DDR3 connectors
(connecting fingers) and receptacle used by A8 are shown in table Table 4-1.
Table 4-1 Model of high-density
connector

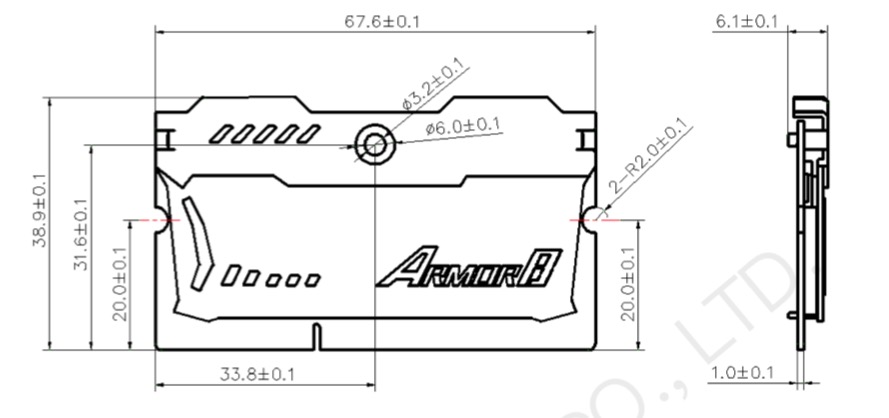

4.2 Dimensions
Board thickness is not greater than
1.5 mm, and the total thickness (board thickness + thickness of both front
panel and back panel) is not greater than 6.5 mm.
|
Type
|
Brand
|
Material Code
|
|
DDR3
|
/
|
/
|
|
Receptacle
|
Tyco
|
2-2013289-1
|
Receiving Card A8
Specifications 4
Hardware
Unit of the dimension chart is [mm".
Ground connection is enabled for location hole (GND).

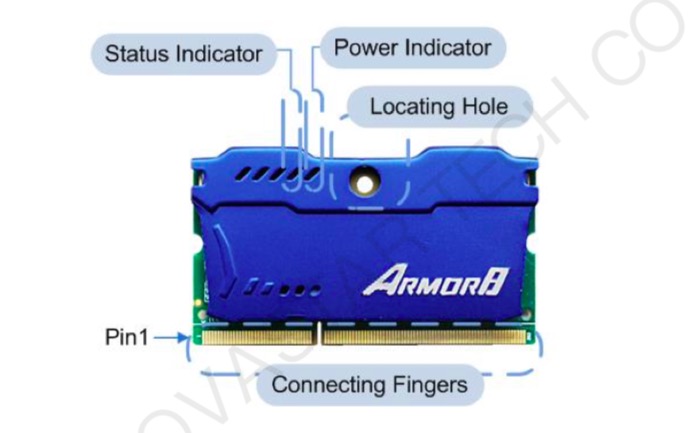

4.3 Indicators
|
Indicator
|
Status
|
Description
|
|
Status indicator (green)
|
Flashing every other 1s.
|
The receiving card works normally,
Ethernet cable connection is normal, and video source input is available.
|
|
Flashing every other 3s.
|
The receiving card works normally,
while the Ethernet cable connection is abnormal.
|
|
Rapidly flashing for 3 times every
other 3s.
|
The receiving card works normally,
Ethernet cable connection is normal, while no video source input is
available.
|
|
Rapidly flashing every other 0.5s.
|
Program loading fails in normal
operating state, coming to the backup operating state.
|
|
Rapidly flashing for 8 times every
other 1s.
|
The receiving card is in the
Ethernet port backup status and the backup is effective.
|
|
Power indicator (red)
|
Always on
|
It is always on after the power is
on.
|
Receiving Card A8
Specifications 4
Hardware
4.4 Definition of Data Interface (
Top ) 4.4.1 32-Group
Parallel Data
|
J13A
|
|
|
Shield grounding
|
Eth_Sheild
|
1
|
2
|
Eth_Sheild
|
Shield grounding
|
|
|
|
Shield grounding
|
Eth_S-heild
|
3
|
4
|
Eth_Sheild
|
Shield grounding
|
|
|
Gigabit Ethernet port
|
|
NC
|
5
|
6
|
NC
|
|
Gigabit Ethernet port
|
|
|
NC
|
7
|
8
|
NC
|
|
|
/
|
Port2_T0+
|
9
|
10
|
Port1_T0+
|
/
|
|
/
|
Port2_T0-
|
11
|
12
|
Port1_T0-
|
/
|
|
|
NC
|
13
|
14
|
NC
|
|
|
/
|
Port2_T1+
|
15
|
16
|
Port1_T1+
|
/
|
|
/
|
Port2_T1-
|
17
|
18
|
Port1_T1-
|
/
|
|
|
NC
|
19
|
20
|
NC
|
|
|
/
|
Port2_T2+
|
21
|
22
|
Port1_T2+
|
/
|
|
/
|
Port2_T2-
|
23
|
24
|
Port1_T2-
|
/
|
|
|
NC
|
25
|
26
|
NC
|
|
|
/
|
Port2_T3+
|
27
|
28
|
Port1_T3+
|
/
|
|
/
|
Port2_T3-
|
29
|
30
|
Port1_T3-
|
/
|
|
|
|
NC
|
31
|
32
|
NC
|
|
|
Receiving Card A8
Specifications 4
Hardware
4.4.2 64-Group Serial Data
|
J13A
|
|
|
Shield grounding
|
Eth_Sheild 1 2 Eth_Sheild
|
Shield grounding
|
|
|
|
Shield grounding
|
Eth_Sheild 3 4 Eth_Sheild
|
Shield grounding
|
|
|
Gigabit Ethernet port
|
|
NC 56 NC
|
|
Gigabit Ethernet port
|
|
|
NC 78 NC
|
|
|
/
|
Port2_T0+ 9 10 Port1_T0+
|
/
|
|
/
|
Port2_T0- 11 12 Port1_T0-
|
/
|
|
|
NC 13 14 NC
|
|
|
/
|
Port2_T1+ 15 16 Port1_T1+
|
/
|
|
/
|
Port2_T1- 17 18 Port1_T1-
|
/
|
|
|
NC 19 20 NC
|
|
|
/
|
Port2_T2+ 21 22 Port1_T2+
|
/
|
|
/
|
Port2_T2- 23 24 Port1_T2-
|
/
|
|
|
GND 25 26 GND
|
|
|
/
|
Port2_T3+ 27 28 Port1_T3+
|
/
|
|
/
|
Port2_T3- 29 30 Port1_T3-
|
/
|
|
|
|
NC 31 32 NC
|
|
|
|
|
|
NC 33 34 NC
|
|
|
|
|
|
GND 35 36 GND
|
|
|
|
LCD
|
CS signal of LCD
|
EXT_LCD_CS 37 38 NC
|
|
|
Extended Functions Description
Receiving Card A8
Specifications 4
Hardware
|
Extended Functions Description
|
|
RFU3
|
HUB_CODE0
|
HUB_CODE0
|
Flash control interface 1
|
|
RFU4
|
HUB_SPI_CLK
|
HUB_SPI_CLK
|
Clock signal of the serial
interface
|
|
RFU5
|
HUB_CODE1
|
HUB_CODE1
|
Flash control interface 2
|
|
RFU6
|
HUB_SPI_CS
|
HUB_SPI_CS
|
CS signal of the serial interface
|
|
RFU7
|
HUB_CODE2
|
HUB_CODE2
|
Flash control interface 3
|
|
RFU8
|
/
|
HUB_SPI_MOSI
|
Module Flash storage data input
|
|
HUB_UART_TX
|
/
|
TX signal of the smart module
|
|
RFU9
|
HUB_CODE3
|
HUB_CODE3
|
Flash control interface 4
|
|
RFU10
|
/
|
HUB_SPI_MISO
|
Flash storage data output of the
lamp panel
|
|
HUB_UART_RX
|
/
|
RX signal of the smart module
|
|
RFU11
|
HUB_H164_CSD
|
HUB_H164_CSD
|
74HC164 data signal
|
|
RFU12
|
POWER_STA1
|
POWER_STA1
|
Dual-power detection signal 1
|
|
RFU13
|
HUB_H164_CLK
|
HUB_H164_CLK
|
74HC164 Clock signal
|
|
RFU14
|
POWER_STA2
|
POWER_STA2
|
Dual-power detection signal 2
|
|
RFU15
|
MS_ID
|
MS_ID
|
Dual-card backup identification
signal
|
|
RFU16
|
/
|
/
|
/
|
|
RFU17
|
MS_DATA
|
MS_DATA
|
Dual-card backup connection signal
|
|
RFU18
|
HUB_CODE4
|
HUB_CODE4
|
Flash control interface 5.
|
Note: The RFU8 and RFU10 are signal
multiplex extension interfaces. You can select only one interface from either
the Recommended Smart Module Interface or the Recommended Module
Flash Interface at the same time.
Receiving Card A8
Specifications 7
Specifications
|
Input voltage
|
DC 3.3 V–5.5 V
|
|
Rated current
|
0.5 A
|
|
Rated power consumption
|
2.5 W
|
|
Operating temperature
|
-20°C–70°C
|
|
Storage temperature
|
-25°C–125°C
|
|
Operating humidity
|
10%RH–90%RH
|
|
Dimensions
|
67.6 mm ×38.9 mm ×6.1 mm
|
|
Net weight
|
9.9 g
|
|
Certifications
|
RoHS
|
|
Packing
|
An antistatic bag and
anti-collision foam are prepared for each receiving card.
Dimensions of the packing box: 378
mm ×190 mm × 120 mm, each of 40 receiving cards.
|
|
|
|
