Novastar all-in-one controller VX6s Model
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Delivery Time:
- 15-30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1500 square meter/month |
| Supply Ability: | 1000 square meter/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CCC,CE,UL,RoHS,FCC |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
Novastar all-in-one controller VX6s Model
|
Product Feature: Novastar all-in-one controller VX6s Model |
-
Features 7 input connectors: 2 × 3G-SDI, 2 × HDMI1.3, 2 × DVI, 1 × USB.
-
Supports 3 × layers and 1 × OSD.
-
Supports quick and advanced screen configurations.
-
Switches the PVW to PGM by pressing only the TAKE button in the switcher mode.
-
Supports PGM preview in the switcher mode.
-
Supports adjustment of input resolutions and backup of input source.
-
Supports brightness adjustment of the screen loaded by the VX6s.
-
Multiple VX6s units can be cascaded.
-
Automatically scales the image to fit the whole screen.
-
The maximum video output width is 4096 pixels.
-
A total of 16 user presets can be created and saved as templates. The templates can be used directly and conveniently.
-
Any HDMI or DVI input source can be used as the synchronization signal to achieve vertical synchronization of output.
-
Features an intuitive OLED screen and clear button indicator lights in the front panel, simplifying system control and operation.
|
|
|

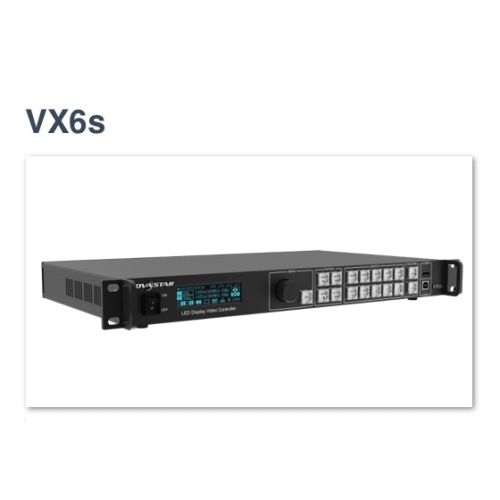

Product Image |
|
Product Parameters |
Front Panel
|
No. |
Button |
Function |
||||||
|
1 |
ON/OFF |
Switch of the device |
||||||
|
2 |
OLED screen |
Displays the current status and settings menu of the device. |
||||||
|
3 |
Knob |
|
||||||
|
4 |
ESC |
A return key, used to exit the current menu or operation |
||||||
|
5 |
Layer and preset buttons |
Pressing a button enters the corresponding layer property menu.
|
||||||
|
6 |
Input source buttons |
Indicates the status of the input
source. |
||||||
All-in-One Video Controller VX6s
Specifications 3 Appearance
|
accessed and in use.
|
||
|
7 |
Function buttons |
l TAKE: In the switcher mode, pressing the TAKE button can switch the PVW to PGM seamlessly with the switching effects set previously. l FN: A custom menu button |
|
8 |
USB |
l USB (Type-B): Connects to the upper computer. l USB (Type-A): A reserved port |
Rear Panel
|
Inputs |
||||||||
|
Connector |
Quantity |
Description |
||||||
|
3G-SDI |
2 |
Supports input resolutions up to 1920×1080@60Hz and downward compatibility. |
||||||
|
USB |
2 |
l Connects to a USB flash drive to play video or picture files stored in the drive. l Connects to a mouse. |
||||||
|
AUDIO |
2 |
Output audio connectors. |
||||||
|
DVI |
2 |
Complies with the VESA standard. Supports input resolutions up to 1920×1200@60Hz and downward compatibility. Supports HDCP. |
||||||
|
HDMI |
2 |
Supports input resolutions up to 1920×1200@60Hz and downward compatibility. Supports HDCP. |
||||||
|
Outputs |
||||||||
|
Connector |
Quantity |
Description |
||||||
|
Ethernet port |
6 |
Six Ethernet outputs |
||||||
|
DVI |
1 |
|
||||||
|
Control |
||||||||
All-in-One Video Controller VX6s
Specifications 3 Appearance
|
Connector |
Quantity |
Description |
||||||
|
ETHERNET |
1 |
Connects to the PC for communication, or to the network. |
||||||
|
USB (Type-B) |
1 |
l Connects to the PC for device
control. |
||||||
|
USB (Type-A) |
1 |
Used as the output for cascading devices |
||||||
|
Overall Specifications |
||||||||
|
Connector |
Quantity |
Description |
||||||
|
Power |
1 |
AC 100 V–240 V 50/60 Hz |
||||||
|
Power consumption |
||||||||
|
Operating temperature |
-20°C–60°C |
|||||||
|
Dimensions |
483.60 mm ×273.30 mm ×45.00 mm |
|||||||
|
Weight |
||||||||
|
Package case |
|
