Novastar all-in-one controller VX4U Model
|
Product Feature: Novastar all-in-one controller VX4U Model |
-
-
1) The inputs of the VX4U include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP×1 and USB×1. The supported input resolution is up to 1920× 1200 60Hz. The input images of VX4U can be zoomed point-to-point according to the resolution of LED display.
-
2) With seamless quick switch and fade-in/out effects to enhance and present pictures of professional quality.
-
3) The location and size of PIP (Picture in Picture) are adjustable, which can be controlled at will.
-
4) Adopts Nova G4 engine. The screen is stable and flicker free without scanning lines. Images are exquisite and have a good sense of depth.
-
5) Able to perform white balance calibration and color gamut mapping based on the different features of LEDs used by screens to ensure restoration of true colors.
-
6) HDMI/external independent audio input.
-
7) Supports high-bit video input, 10bit/8bit.
www.novastar.tech
Page 1
Xi`an NovaStar Tech Co., Ltd.
-
8) Loading capacity of video output:2.3 million pixels.
-
9) Supports multiple controller montage for loading huge screen;
-
10) Supports Nova's new-generation pixel-by-pixel calibration
technology and the calibration is fast and efficient.
-
11) Adopts an innovative design to enable smart configuration. Screen
settings can be completed within several minutes, which has greatly
shorten the preparation time.
-
12) With an intuitive LCD interface and clear button indicator lights to
simplify the control of the system.

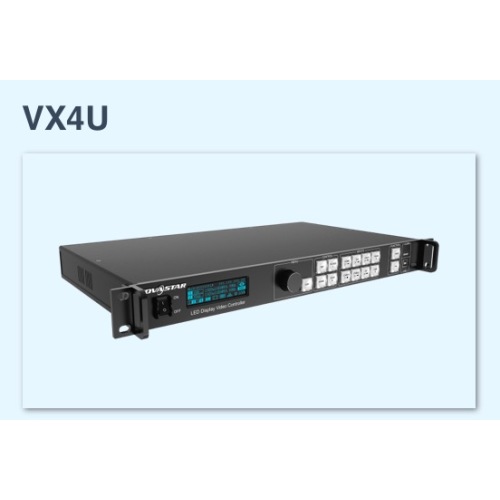

Product Image
-
|
Product Parameters |
|
Input Index |
||
|
Port |
Qty |
Resolution Specifications |
|
CVBS |
2 |
PAL/NTSC |
|
VGA |
2 |
VESA Standard, support max. 1920×1200 60Hz input |
|
DVI |
1 |
VESA Standard (support 1080i input), support HDCP |
|
USB |
1 |
Multimedia file formats: avi, mp4, mpg, mkv,
mov and vob |
|
Multimedia coding formats: MJPEG, MPEG-1, MPEG-2, MPEG-4, DivX, H.264, Xvid |
||
|
HDMI |
1 |
EIA/CEA-861 standard, in accordance with HDMI-1.3 standard, support HDCP |
|
DP |
1 |
VESA Standard |
|
Output Index |
||
|
Port |
Qty |
Resolution Specifications |
|
DVI LOOP |
1 |
Consistent with DVI input |
|
VGA |
1 |
Max. output 1280×1024 60Hz (2.3 million
pixels) Max. horizontal resolution up to 3840 pixels Max. vertical resolution up to 1920 pixels |
|
DVI |
1 |
|
|
Overall Specifications |
|
|
Input Power |
AC100~240VAC,50/60Hz |
www.novastar.tech Page 5
Xi`an NovaStar Tech Co., Ltd.
|
Overall Power Consumption |
25W |
|
Operating Temperature |
-20~60°C |
|
Dimensions |
482.6×250×45(mm) |
|
Weight |
2.55 Kg |
Appendix
Conflict list of PIP signal sources
|
Input Source of Main Channel |
|||||||||
|
HDMI |
DVI |
VGA1 |
VGA2 |
CVBS1 |
CVBS2 |
USB |
DP |
||
|
PIP Input Source |
HDMI |
× |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
DVI |
× |
√ |
√ |
√ |
√ |
√ |
√ |
||
|
VGA1 |
√ |
√ |
× |
√ |
√ |
√ |
√ |
||
|
VGA2 |
√ |
√ |
× |
√ |
√ |
√ |
√ |
||
|
CVBS1 |
√ |
√ |
√ |
√ |
× |
√ |
√ |
||
|
CVBS2 |
√ |
√ |
√ |
√ |
× |
√ |
√ |
||
|
USB |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||
|
DP |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||
|
Package case |
|
