Led display receiving card A7 Model

Product Feature:Led display receiving card A7 Model

Features	Description
Supporting pixel level brightness and chroma calibration	Working with NovaLCT and NovaCLB, A7 supports brightness and chroma calibration on each pixel.
Supporting image rotation in 90° increments (Calibration not supported after rotation)	On NovaLCT, the image on the screen can be set to rotate in the multiples of 90° (90°, 180°, 270° and 360°).
Supporting quick seam correction	Working with NovaLCT, A7 supports quick adjustment of bright and dark lines, which can remove the seams between modules and between cabinets.
Supporting 3D function	On NovaLCT or operation panel of controllers which support 3D function, you can enable 3D function and set the 3D parameters to make the LED screen display 3D effects.

3.2 Improvement in Maintainability

Features

Description

Supporting the smart module

(Supported by dedicated firmware program)

The smart module is composed of Flash and MCU.

Flash could store calibration coefficients and module information. MCU could communicate with the receiving card to realize monitoring over temperature, voltage and wiring communication status for the module. Working with the driver chip, A7 supports open circuit detection on LED.

The smart module could make monitoring unit smaller, requiring no independent monitoring card

Receiving Card A7
Specifications 3 Features

Features	Description
	and saving cabinet space.
Supporting LVDS transmission (Supported by dedicated firmware program)	The transmission mode of low-voltage differential signaling (LVDS) is used, which reduces the number of data cables that connect the receiving card's HUB board to the module, increases the transmission distance, improves the signal transmission quality, and better stabilizes the image output.
Supporting auto module calibration	After the module has been replaced, the receiving card can automatically read the new module ID and calibration coefficient which could be saved to calibration system files.
Supporting Mapping function	Enable the Mapping function on NovaLCT, then the target cabinet will display the cabinet number and Ethernet port information, and the user could get the receiving card`s location and wiring route.
Supporting setting of images pre-stored of the receiving card	On NovaLCT, the specified images could be set as the screen startup image and images used when the Ethernet cable is disconnected or no video source signal is available.
Supporting module Flash management	On NovaLCT, lamp panel Flash could be managed.
Supporting monitoring voltage and temperature of itself	The voltage and temperature of the receiving card itself can be monitored without using other peripherals. The monitoring data can be checked on NovaLCT.
Supporting LCD module	Supports NovaStar's general 5-pin LCD module. The LCD module is connected to the HUB board to display temperature, voltage, single operating time and total operating time of the receiving card.
Support one-click application of calibration coefficient in module Flash	In the event of network outage, hold down the self- test button to read the calibration coefficient in module Flash back to the receiving card.

3.3 Improvement in Hardware Reliability

Features	Description
Supporting dual-card backup	In the high-reliability environment, single HUB board could be populated with two A7 receiving cards. In case that the main receiving card fails, the standby one will serve in a timely manner to ensure normal operation of the display.
Supporting dual-power	Two power supplies could be simultaneously

Receiving Card A7
Specifications 3 Features

Features	Description
backup detection	connected, and operating status of the power supplies could be detected.
Supporting loop backup	HUB`s Ethernet port improves the reliability for the serial connection of the receiving card through main and standby redundant mechanism. Among the main and standby serial connection lines, if one fails, the other will begin to work to ensure the normal operation of the display.

3.4 Improvement in Software Reliability

Features

Description

Supporting readback of firmware version

On NovaLCT, the firmware versions of the receiving card can be read back.

Supporting dual-backup and restoring of the calibration coefficient

Calibration coefficients could be saved to both the factory area and application area at the same time.

Calibration coefficients in the factory area is default as the delivery value, while the calibration coefficient in the application area could be modified or be restored to the factory reset by the user on NovaLCT.

Product Image

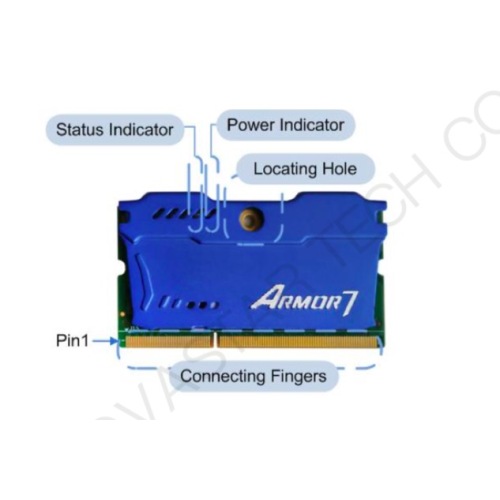

Led Display Receiving Card A7 Model Novastar Of Led Display Receiver Card

Product Parameters

Type	Brand	Material Code
DDR3	/	/
Receptacle	Tyco	2-2013289-1

Receiving Card A7
Specifications 4 Hardware

Unit of the dimension chart is [mm". Ground connection is enabled for location hole (GND).

4.3 Indicators

Indicator	Status	Description
Status indicator (green)	Flashing every other 1s.	The receiving card works normally, Ethernet cable connection is normal, and video source input is available.
	Flashing every other 3s.	The receiving card works normally, while the Ethernet cable connection is abnormal.
	Rapidly flashing for 3 times every other 3s.	The receiving card works normally, Ethernet cable connection is normal, while no video source input is available.
	Rapidly flashing every other 0.5s.	Program loading fails in normal operating state, coming to the backup operating state.
	Rapidly flashing for 8 times every other 1s.	The receiving card is in the Ethernet port backup status and the backup is effective.
Power indicator (red)	Always on	It is always on after the power is on.

Receiving Card A7
Specifications 4 Hardware

4.4 Definition of Data Interface ( Top ) 4.4.1 32-Group Parallel Data

J13A
	Shield grounding	Eth_Sheild	1	2	Eth_Sheild	Shield grounding
	Shield grounding	Eth_S-heild	3	4	Eth_Sheild	Shield grounding
Gigabit Ethernet port		NC	5	6	NC		Gigabit Ethernet port
		NC	7	8	NC
	/	Port2_T0+	9	10	Port1_T0+	/
	/	Port2_T0-	11	12	Port1_T0-	/
		NC	13	14	NC
	/	Port2_T1+	15	16	Port1_T1+	/
	/	Port2_T1-	17	18	Port1_T1-	/
		NC	19	20	NC
	/	Port2_T2+	21	22	Port1_T2+	/
	/	Port2_T2-	23	24	Port1_T2-	/
		NC	25	26	NC
	/	Port2_T3+	27	28	Port1_T3+	/
	/	Port2_T3-	29	30	Port1_T3-	/
		NC	31	32	NC

Receiving Card A7 Specifications

Receiving Card A7
Specifications 4 Hardware

4.4.2 64-Group Serial Data

J13A
	Shield grounding	Eth_Sheild 1 2 Eth_Sheild	Shield grounding
	Shield grounding	Eth_Sheild 3 4 Eth_Sheild	Shield grounding
Gigabit Ethernet port		NC 56 NC		Gigabit Ethernet port
		NC 78 NC
	/	Port2_T0+ 9 10 Port1_T0+	/
	/	Port2_T0- 11 12 Port1_T0-	/
		NC 13 14 NC
	/	Port2_T1+ 15 16 Port1_T1+	/
	/	Port2_T1- 17 18 Port1_T1-	/
		NC 19 20 NC
	/	Port2_T2+ 21 22 Port1_T2+	/
	/	Port2_T2- 23 24 Port1_T2-	/
		GND 25 26 GND
	/	Port2_T3+ 27 28 Port1_T3+	/
	/	Port2_T3- 29 30 Port1_T3-	/
		NC 31 32 NC
		NC 33 34 NC
		GND 35 36 GND
LCD	CS signal of LCD	EXT_LCD_CS 37 38 NC

Receiving Card A7 Specifications

Note 1.

Voltage ranging from 3.3V to 5.5V is recommended for input power (VCC).

4.4.3 Extended Functions Design

Expandable Interface

RFU1 RFU2

Recommended Smart Module Interface

Reserved Reserved

Recommended Module Flash Interface

Reserved Reserved

Description

Reserved pin connected to MCU Reserved pin connected to MCU

www.novastar.tech

GND 143 144 GND NC 145 146 NC NC 147 148 NC NC 149 150 NC NC 151 152 NC NC 153 154 NC NC 155 156 NC NC 157 158 NC NC 159 160 NC GND 161 162 GND NC 163 164 NC NC 165 166 NC NC 167 168 NC NC 169 170 NC NC 171 172 NC NC 173 174 NC NC 175 176 NC NC 177 178 NC GND 179 180 GND

NC 197 198 NC VCC 199 200 VCC VCC 201 202 VCC VCC 203 204 VCC

Note2. Operatingindicatorthatmeetslowlevelisvalid.

Note 3. OE_RED, OE_GREEN and OE_BLUE are display enabled pins. In case

that OE_RGB are not controlled separately, OE_RED is applied. While PWM chip is used, GCLK signal is enabled.

Note 4. RFU1–18 are the reserved extended function interfaces. Please refer to [4.4.3 Extended Functions Design".

Extended Functions Description

Receiving Card A7
Specifications 4 Hardware

Extended Functions Description
RFU3	HUB_CODE0	HUB_CODE0	Flash control interface 1
RFU4	HUB_SPI_CLK	HUB_SPI_CLK	Clock signal of the serial interface
RFU5	HUB_CODE1	HUB_CODE1	Flash control interface 2
RFU6	HUB_SPI_CS	HUB_SPI_CS	CS signal of the serial interface
RFU7	HUB_CODE2	HUB_CODE2	Flash control interface 3
RFU8	/	HUB_SPI_MOSI	Module Flash storage data input
RFU8	HUB_UART_TX	/	TX signal of the smart module
RFU9	HUB_CODE3	HUB_CODE3	Flash control interface 4
RFU10	/	HUB_SPI_MISO	Flash storage data output of the lamp panel
RFU10	HUB_UART_RX	/	RX signal of the smart module
RFU11	HUB_H164_CSD	HUB_H164_CSD	74HC164 data signal
RFU12	POWER_STA1	POWER_STA1	Dual-power detection signal 1
RFU13	HUB_H164_CLK	HUB_H164_CLK	74HC164 Clock signal
RFU14	POWER_STA2	POWER_STA2	Dual-power detection signal 2
RFU15	MS_ID	MS_ID	Dual-card backup identification signal
RFU16	/	/	/
RFU17	MS_DATA	MS_DATA	Dual-card backup connection signal
RFU18	HUB_CODE4	HUB_CODE4	Flash control interface 5.

Note: The RFU8 and RFU10 are signal multiplex extension interfaces. You can select only one interface from either the Recommended Smart Module Interface or the Recommended Module Flash Interface at the same time.

Receiving Card A7 Specifications

Step 1 Step 2

Step 3 Step 4

Step 5

5 Firmware Update

5 Firmware Update

Visit www.novastar.tech to download the firmware update package and save it to PC. Run NovaLCT and choose User > Advanced Synchronous System User Login to

Click Browse to select the program (the firmware update package you saved on PC) path and then click Update.

Click Refresh to check current hardware version information.

Receiving Card A7 Specifications

6 Applications

6 Applications

A7 is applied to LED display synchronous system which is generally composed of the LED display, HUB board, receiving card, video controller and controller peripheral. The receiving card is connected to the display over a HUB board.

Synchronous system requires connecting a computer to display the computer`s images and texts on the LED screen. Structure of the synchronous system is as shown in the following figure.

Receiving Card A7
Specifications 7 Specifications

7 Specifications

Input voltage	DC 3.3 V–5.5 V
Rated current	0.5 A
Rated power consumption	2.5 W
Operating temperature	-20°C–70°C
Storage temperature	-25°C–125°C
Operating humidity	10%RH–90%RH
Dimensions	67.6 mm ×38.9 mm ×6.1 mm
Net weight	9.9 g
Certifications	RoHS
Packing	An antistatic bag and anti-collision foam are prepared for each receiving card. Dimensions of the packing box: 378 mm ×190 mm × 120 mm, each of 40 receiving cards.

www.novastar.tech 17

Package case

5f4cf9d6d929d8be4af97daad4ea7d5 Wooden package case
