SMD3535 Outdoor LED Display Screen
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 8000 M²/month |
Supply Ability: | 10000 M²/month |
Payment Type: | L/C,T/T,Western Union |
Incoterm: | FOB,CFR,CIF,EXW |
Certificate: | CCC.CE.ETL.FCC |
Transportation: | Ocean,Air |
Port: | Shenzhen |
SMD3535 Outdoor LED Display Screen
BOF Series
Robust, Strudy, Conventional

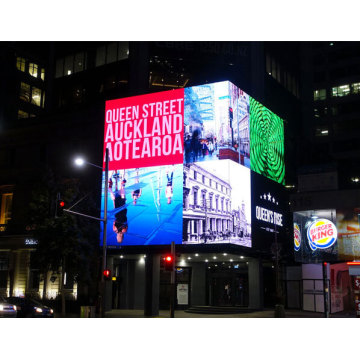

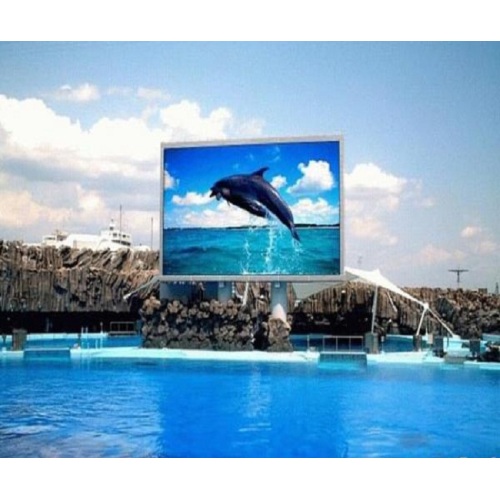

Outdoor Advertising Display
Specification
|
BOF-4 | BOF-6 | BOF-8 | BOF-10 |
Physical Pitch | 4.81 mm | 6.67 mm | 8 mm | 10 mm |
Pixel Configuration | SMD 2727 | SMD 2727 | SMD 3535 | SMD 3535 |
Pixel Density |
43,264 pixels/m² |
28,224 pixels/m² |
15,625 pixels/m² |
10,000 pixels/m² |
Module Dimensions (W × H) (mm) | 250 × 250 | 320 × 320 | 256 × 256 | 320 × 160 |
Panel Dimensions (mm) | 1000 × 1000 × 187 | 1280 × 960 × 187 | 1280 × 960 × 187 | 1280 × 960 × 187 |
NO .of Modules Per Panel (W × H) | 4 × 4 | 4 × 3 | 5 × 3 | 3× 6 |
Physical Resolution of Module (W × H) | 52 × 52 | 48 × 48 | 32 × 32 | 32 × 16 |
Physical Resolution of Panel (W × H) | 208 × 208 | 192 × 144 | 160 × 96 | 96 × 96 |
Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
Weight | 65/45 | 65/45 | 65/45 | 65/45 |
Processing | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
Average Power Consumption | 360 W/panel | 360 W/panel | 360 W/panel | 360 W/panel |
Max Power Consumption | 900 W/panel | 900 W/panel | 900 W/panel | 900 W/panel |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 |
Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Feature

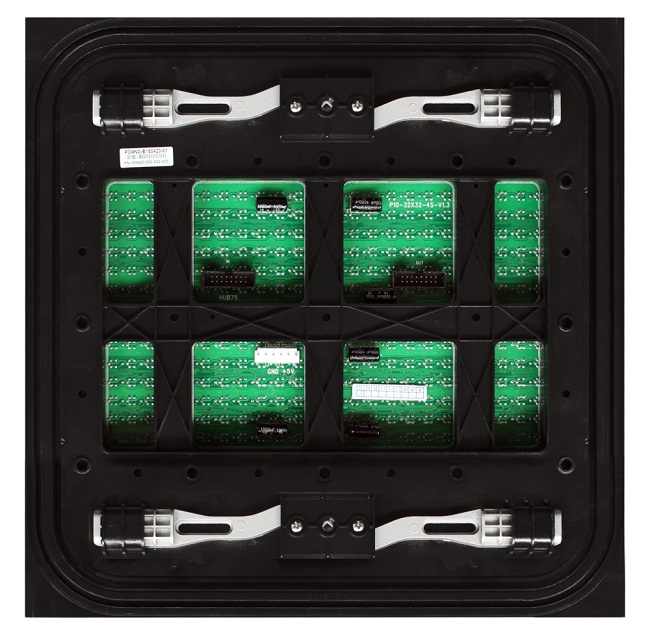

Multifunctional Module Buckle
Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.

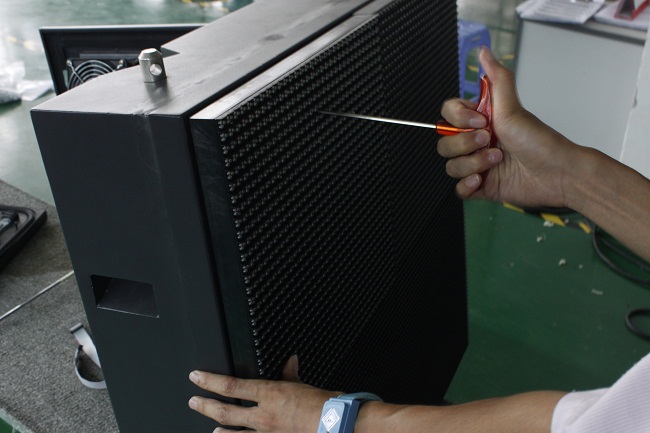

Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick and easy installation
Front access

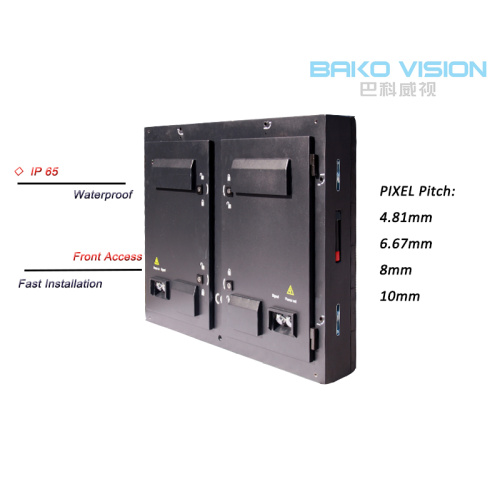

Outdoor Rated
IP65 rating for front and rear
Suitable brightness adjustable for outdoor day and night
Strong and high bright LED
Intelligent Software System
Intelligent control and player system by cloud technology
Time management and real time monitoring
Company Introduction
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
