P3.9 Waterproof Outdoor LED Display

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 20 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	8000 M²/month
Supply Ability:	10000 M²/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CCC.CE.ETL.FCC
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

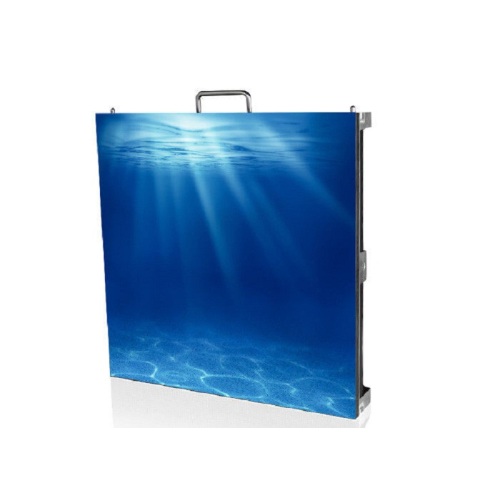

P3.9 Waterproof Outdoor LED Display

BOR-III Series

High Bright, High Definition,

Outdoor Rental LED Display

Specification

	BOR-III-3	BOR-III-4	BOR-III-5	BOR-III-6
Physical Pitch	3.91mm	4.81 mm	5.95mm	6.25 mm
Pixel Configuration	SMD 1921	SMD 2727	SMD 2727	SMD 2727
Pixel Density	65536pixels/m²	43264 pixels/m²	28224 pixels/m²	25600 pixels/m²
Module Dimensions (W × H) (mm)	250 × 250	250 × 250	250 × 250	250 × 250
Panel Dimensions (mm)	500 × 500 × 80 / 500 × 1000 × 80	500 × 500 × 80 / 500 × 1000 × 80	500 × 500 × 80 / 500 × 1000 × 80	500 × 500 × 80 / 500 × 1000 × 80
NO .of Modules Per Panel (W × H)	2 × 2/2×4	2 × 2 /2×4	2 × 2/2×4	2 × 2/2×4
Physical Resolution of Module (W × H)	64×64	52×52	42×42	40×40
Physical Resolution of Panel (W × H)	128×128/128×256	104×104/104×208	84×84/84×168	80×80/80×160
Panel Material	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Single Cabinet Weight	9/ 15 kg/panel	9/ 15 kg/panel	9/ 15 kg/panel	9/ 15 kg/panel
Processing	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4,000 : 1	4,000 : 1	4,000 : 1	4,000 : 1
Average Power Consumption	75 /150 W/panel	75 /150 W/panel	75 /150 W/panel	75 /150 W/panel
Max Power Consumption	225 /550 W/panel	225 /550 W/panel	225 /550 W/panel	225 /550 W/panel
Operating Temp/Humidity	-20℃ - 60℃ / 10% - 60%	-20℃ - 60℃ / 10% - 60%	-20℃ - 60℃ / 10% - 60%	-20℃ - 60℃ / 10% - 60%
Storage Temp/Humidity	-30℃ - 60℃ / 10% - 60%	-30℃ - 60℃ / 10% - 60%	-30℃ - 60℃ / 10% - 60%	-30℃ - 60℃ / 10% - 60%
Refresh Rate	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz
Brightness	≥6000 nits	≥6000 nits	≥6000 nits	≥6000 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing angle	140°	140°	140°	140°
Expected Lifetime	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs
Max Stacking	20/10	20/10	20/10	20/10
Max Hanging	20/10	20/10	20/10	20/10
Servicing	Front / Rear	Front / Rear	Front / Rear	Front / Rear
IP Rating (Front/Rear)	IP 65/ IP 54	IP 65/ IP 54	IP 65/ IP 54	IP 65/ IP 54
Certification	CCC, CE, ETL, RoHS	CCC, CE, ETL, RoHS	CCC, CE, ETL, RoHS	CCC, CE, ETL, RoHS

Feature

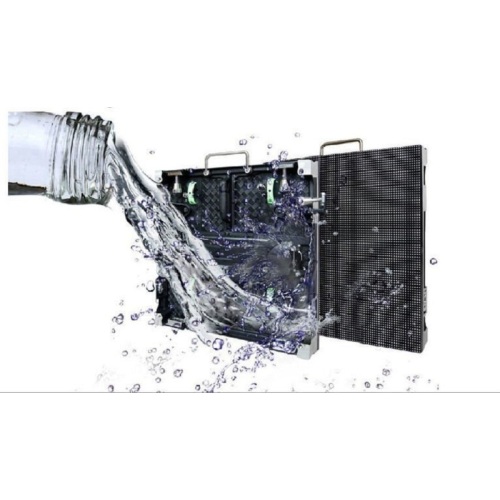

Outdoor Rated
→ IP65 rating for front and rear
→ Suitable brightness adjustable for outdoor day and night
→ Deep black level, contrast ratio 4000:1

User Friendly and Fast Installation

→ Truss hanging and ground support both available
→ Fast lock and handle designed user friendly
→ Front and rear access
→ Tools free installation

Outdoor

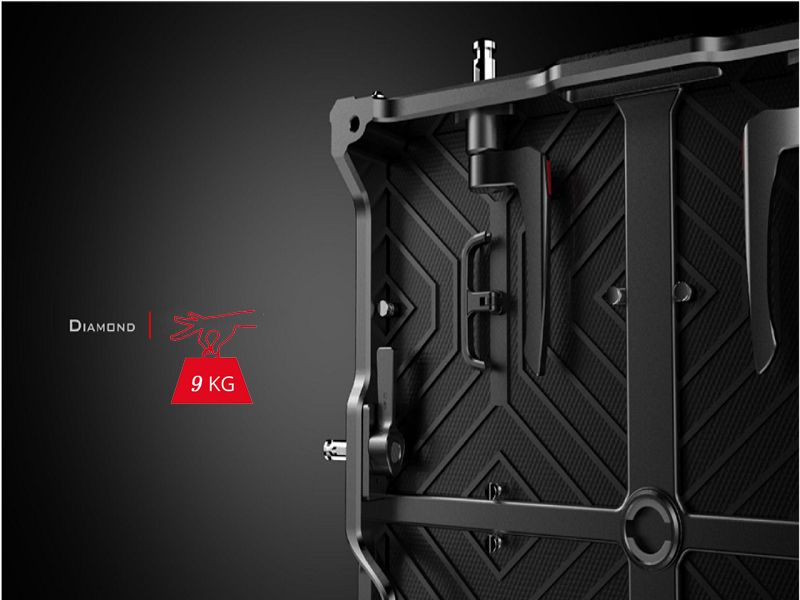

Slim,Light Weight and Quiet

→ 500mm×500mm or 500×1000mm options
→ 80mm thickness
→ 1 person job
→ Fanless design

Smart Concave and Convex
→ Both 500mm×500mm and 500mm×1000mm cabinets are arc-able
→ 0°-10° concave and convex degree

outdoor
