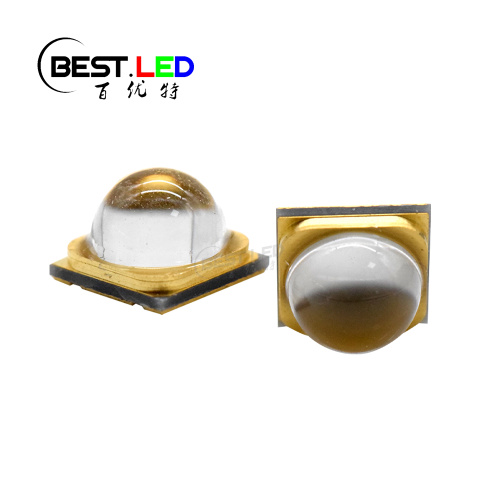

400nm High Power LEDs Lens Type SMD LED

Get Latest Price

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000000000
Supply Ability:	10000000000
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO:9001
HS Code:	8541410090
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Product Description

At the same situation, High Power LED will produce much more heat than common small power LED such as 0603 SMD LED , 1206 SMD LED ect. This SMD LED have the size on 6.5x6.5mm so we can also name it with 6565 SMD LED. Which will be bigger than common SMD LED. Because it will produce more heat when it's working, it will need more better heat dissipation performance. In this case, this big size and copper LED frame will help a lot. With bigger package size and copper material, this high power LED will be much more easy to transfer the heat. 395nm - 400nm LED are very popular in area of UV curing, medical and health, phototherapy, fluorescent detection, plant growth and art decorative lighting. 6060UVC40P45 were package with 400nm LED wavelength inside so it emits deep purple color light, which is within the ultraviolet spectrum. If you need some purple UV LED to zing your project, please contact us for more information about that.

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	12	w
Pulse Forward Current	IFP	2000	mA
Forward voltage	IF	≤1000	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	245	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	6	7	8	V	IF=1400mA
Total Radiated Power	PO	3000	-	4000	mw	IF=1400mA
Dominant Wavelength	λp	390 400			nm	IF=1400mA
Half Width	λ△		50		nm	IF=1400mA
Viewing Half Angle	θ1/2		60		deg	IF=1400mA
Reverse Current	IR			5	uA	VR=5V
