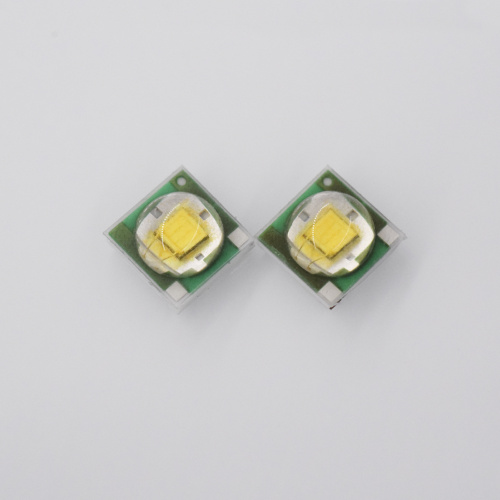

High Power 3535 SMT White LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

-3535 White SMD LED -

3535CW-10000K

These cool 3535 white LED have 10000 kelvin for the white color. Different kelvin in white LED can show different lighting result. When color temperature over 5000K are called "cool white" for white LED, which means this white LED have a blueish white color and make people will cool and calm. While color temperature lower than 3000K are called "warm white" which means this white LED have a yellowish color and will show some warm light and make people feel warm and comfortable when it's working. 3535CW-10000K is a white LED that packaged with 3535 size SMD LED case and 60 degree epoxy lens. For white LED, if you think there just have one single white color, then you are wrong on this case~ In white LED industry, there have kinds of white LED color, yellowish or blueish. In order to make this color more clear, we commonly using the color temperature to measure the color of white LED. Color temperature is conventionally expressed in kelvin, using the symbol "K". If you need some cool white color white LED for your project, this one won't let you disappointment.

3535 white SMD LED

- Size: 3.5*3.5*2.0mm

- Chip Number: 1 chip

- Color: 10000K LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3535 White SMD LED Size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

10000k WHITE LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation

Pd

3000mW

Pulse Forward Current

IFP

2000mA

Forward Current

IF

700mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

1000v

Warranty

Time

5Years

Antistatic bag

Piece

1000Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

3.0

3.4

V

IF=350mA

Luminous Flux

Φ

100

110
lm

IF=350mA

270
300 lm IF=700mA

Color Temperature

TC

9000

15000

k

IF=350mA

Color Rendering Index

Ra

70

IF=350mA

CIE 1931 Coordinate

XY

X:0.27

Y:0.28

IF=350mA

Half Width

Dl

20

nm

IF=350mA

Viewing Half Angle

2q1/2

±30

deg

IF=350mA

Reverse Current

IR

10

uA

VR=5V

Rise Time

Tr

25

ns

IF=350mA

Fall Time

Tf

13

ns

IF=350mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- White LED Temperature -

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related White LED -

- Production -

- SMD LED Use of Attention-

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

High Efficiency 3535 White LED , 3535 White LED , High Power White LED 3535

Parameter	Symbol	Rating
Power Dissipation	Pd	3000mW
Pulse Forward Current	IFP	2000mA
Forward Current	IF	700mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	3.0		3.4	V	IF=350mA
Luminous Flux	Φ	100		110	lm	IF=350mA
Luminous Flux	Φ	270		300	lm	IF=700mA
Color Temperature	TC	9000		15000	k	IF=350mA
Color Rendering Index	Ra	70				IF=350mA
CIE 1931 Coordinate	XY		X:0.27 Y:0.28			IF=350mA
Half Width	Dl		20		nm	IF=350mA
Viewing Half Angle	2q1/2		±30		deg	IF=350mA
Reverse Current	IR			10	uA	VR=5V
Rise Time	Tr		25		ns	IF=350mA
Fall Time	Tf		13		ns	IF=350mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
