- 3535 Red SMD LED -

3535FRC-3W

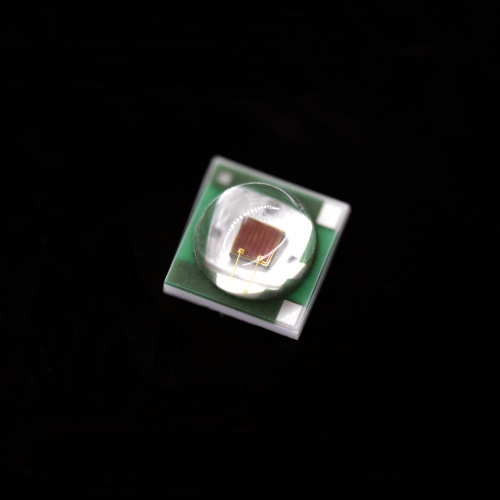

We packaged this 620-625nm red LED with 3535 high power SMT LED case, which can make sure this high power SMD red LED still have a perfect performance and long lifespan when it's working in 700mA and produce extra heat. As you can see in the picture as follow, we use the golden wire for inside connection, which can make sure this high power green LED have a low power consumption. On the other hand, there have a lens on the top of this SMD LED, which make this 3W red LED have a narrower viewing angle than normal. Do you need some super bright red LED for your project? Contact us for more detail!

3535 SMD LED

- Size: 3.5*3.5*2mm

- Chip Number: 1 chip

- Color:620nm LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3535 SMD LED Size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

3535 smd 620nm red 3w led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation

Pd

3000mw

Pulse Forward Current

IFP

2000mA

Forward Current

IF

700mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Temperature

Topr

-40 - +80°C

Storage Temperature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

3000v

Warranty

Time

5 Years

Anti-static bag

Piece

2000/bag

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.9

2.1

2.5

V

IF=350mA

Luminous Flux

ΦV1

50

60

lm

IF=350mA

100 120 lm
IF=700mA

Dominant Wavelength

λD

620

625

630

nm

IF=700mA

Peak Wavelength

λP

633

nm

IF=700mA

Half Width

Dl

18

nm

IF=700mA

Viewing Half Angle

2q1/2

±60

deg

IF=700mA

Reverse Current

IR

5

uA

IF=700mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -
