High Power LED 3535 Red LED 3W

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

Domed Lens High Power Red SMD LED

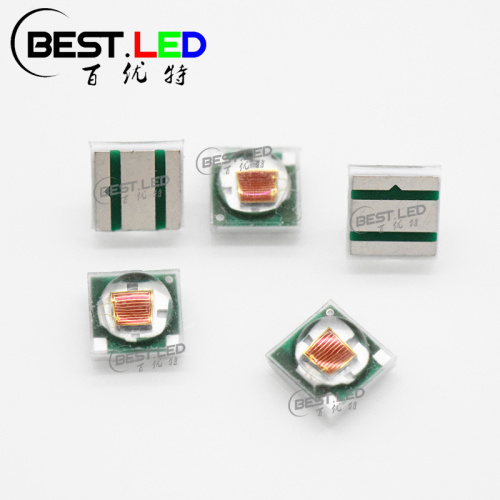

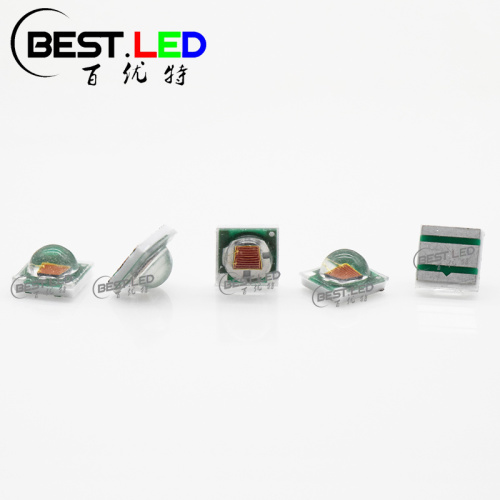

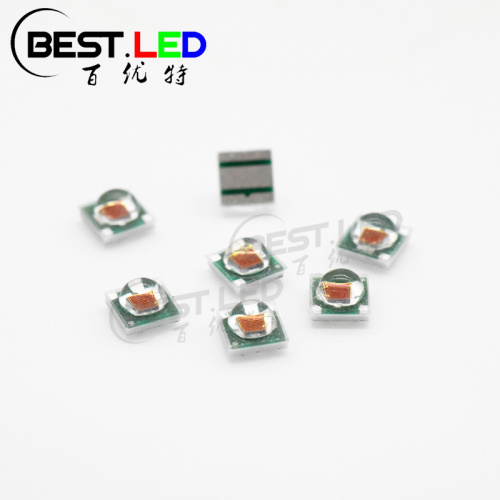

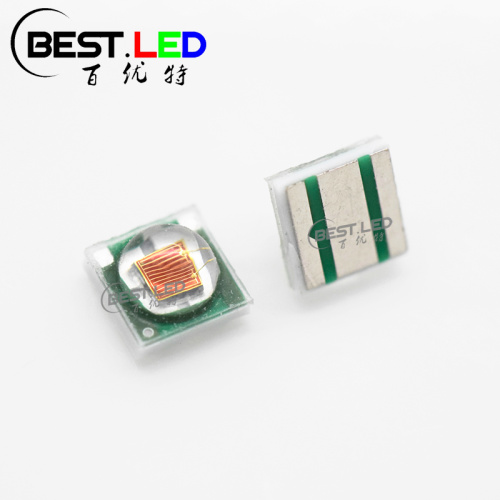

3535URC62D100L3W is a high power red LED that package in 3535 SMD LED with a domed lens on top. There do also have other type of Red SMD LED 3535 LED with flat top. If there have no domed lens on the top of SMD LED. Red SMD LED will got 120 degree or wider viewing angle, which make sure the LED will be able to light up bigger area. In order to light up a longer distance(not just area), we add a dome lens when we do the production things, which can make the viewing angle be 60 degree or 90 degree. Which can gather the light and got a longer lighting distance. Do you need some domed lens red SMD LED for your project? Contact us for more detail about it.

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	1000	mw
Pulse Forward Current	IFP	1000	mA
Forward voltage	IF	≤700	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	125	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	2000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Back

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	3.0 3.2 3.4		3.2 3.4 3.6	V	IF=700mA
Luminous Flux	IV	80		100	lm	IF=700mA
Dominant Wavelength	λD	615-620				IF=700mA
Half Width	λ△		50		nm	IF=700mA
Viewing Half Angle	2θ1/2		120		deg	IF=700mA
Reverse Current	IR			10	uA	VR=5V
